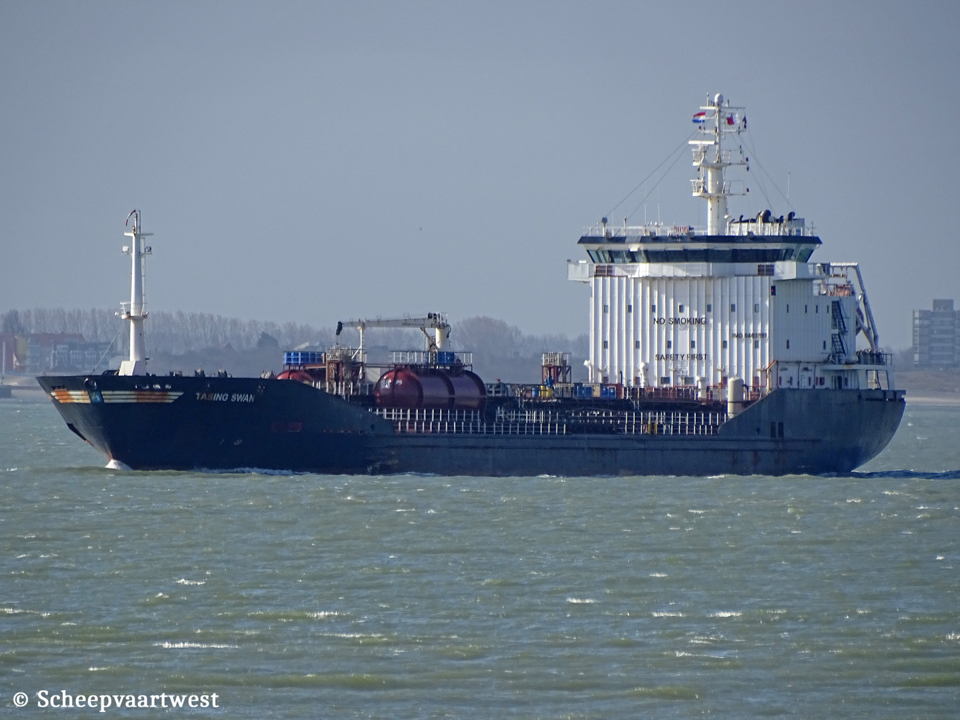

Westerschelde 09 March 2020 |
 |

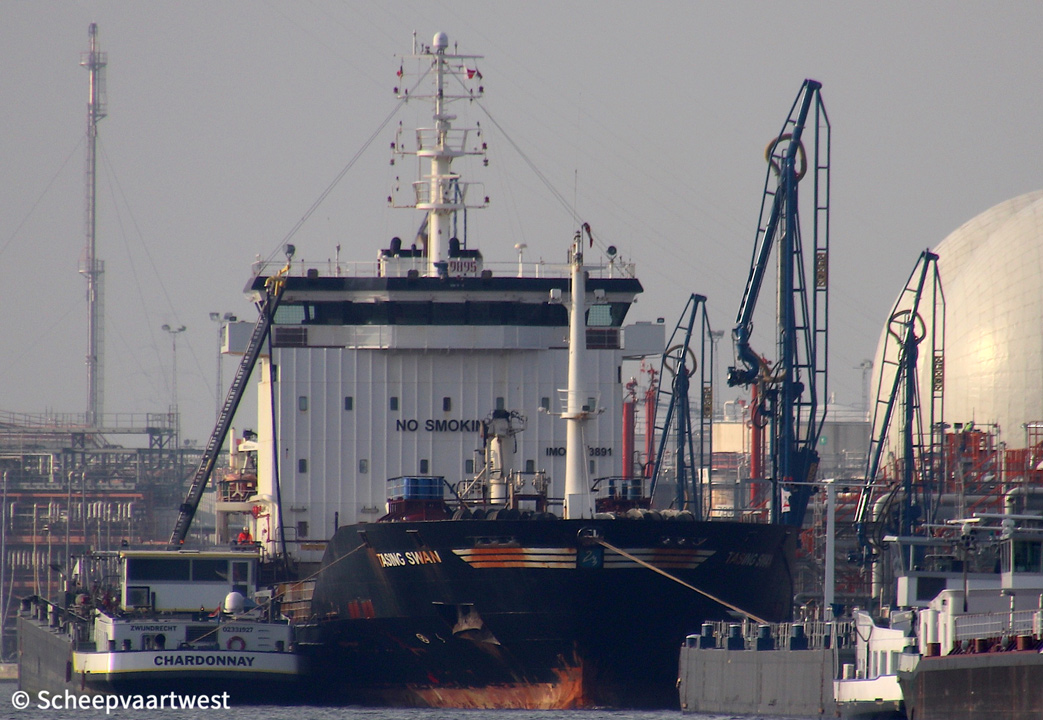

| Antwerpen 31/12/19 |
|
Name |
TASING SWAN |
|
Previous names |
2007 - 02/2008 Hamza Efe Bey 02/2008 - 02/2012 Erria Mie |
|
Type |
Chemical and oil tanker |
|
IMO-number |
9403891 |
|
Call sign |
OUYQ2 |
|
Flag |
Denmark |
|
Port of registry |
Middelfart |
|
Previous flags |
2007 - 2013 Malta, Valletta - Call sign: 9HKD9 |
|
GT |
7.232 t |
|
DWT |
Summer: 11.319,01 t |
|
NT |
3.643 t |
|
Length |
129,75 m overall 123,17 m between perpendiculars |
|
Breadth |
19,63 m extreme |
|
Draught |
Summer: 8,00 m Ballast: 5,15 m |
|
Height from keel to mast |
34,00 m |
|
Freeboard |
2.411 mm |
|
Depth |
10,40 m moulded |
|
Speed |
Max: 14,0 knots Service: 12,0 knots |
|
Built |
2007 |
|
Keel laid |
12/05/2005 |
|
Launch date |
11/01/2006 |
|
Delivery date |
09/05/2007 |
|
Builder |
Istanbul Tersanesi Komutanligi (Istanbul Naval Shipyard) 34890 Alt Kaynarca - Pendik Istanbul, 34890 Turkey |
|
Yard number |
013 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight compartments |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 9L32/40 - 4 stroke 9 cylinder 320 x 400 mm combustion engine 4.500 kW / 6.114 hp at 750 rpm Build: 2005 Builder: MAN B&W Diesel AG, Augsburg - Germany |
|
Propellers |
1x Controllable pitch propeller |
|
Boilers |
1x CHO Garioni thermal oil heater, exhaust heated 41,40 m² - 10,0 bar 2x CHR Garioni thermal oil heater, oil fired 59,00 m² - 10,0 bar |
|
Shaft generator |
1x 1.290 kVA - 1.032 kW |
|
Generators |
2x MAN D2842LE 301 main diesel generatorsets each 625 kVA - 500 kW - 711 hp |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 206 kVA - 165 kW - 249 hp |
|
Bow thruster |
1x 536 bhp |
|
Number of cargo tanks |
14 + 2 slop tanks |
|
Cargo tank capacity 98% |
12.396 m³ |
|
Number of segregations |
15 |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
254 m³ |
|
Pumps |
14x Cargo pumps each 300 m³/h |
|
Manifolds |
Size of manifolds: 254 mm Distance from bow to centre manifold: 68,00 m Distance from stern to centre manifold: 61,75 m Distance between manifolds: 0,87 m Distance from ship side to manifold: 4,58 m Distance from deck to manifold: 2,50 m |
|
Tank capacities |
Fuel oil: 564,84 m³ Ballast: 4.661,23 m³ Lub oil: 38,16 m³ Diesel oil: 114,30 m³ Fresh water: 175,69 m³ |
|
Anchor equipment |
Length: 501,75 m Diameter: 50 mm |
|
Lifting equipment |
1x Engine room crane - SWL 2,0 t 1x Hose handling crane - SWL 5,0 t 1x Provision crane - SWL 2,0 t |
|
Crew |
19 |
|
ISM & commercial manager |
Uni-Tankers A/S Turbinevej 10 500 Middelfart Denmark |
|
Registered owner |
Uni-Tankers M/T "Tasing Swan" Aps Care of Uni-Tankers A/S Turbinevej 10 5500 Middelfart Denmark |
|
Latest data adjustment |
24 June 2022 |
