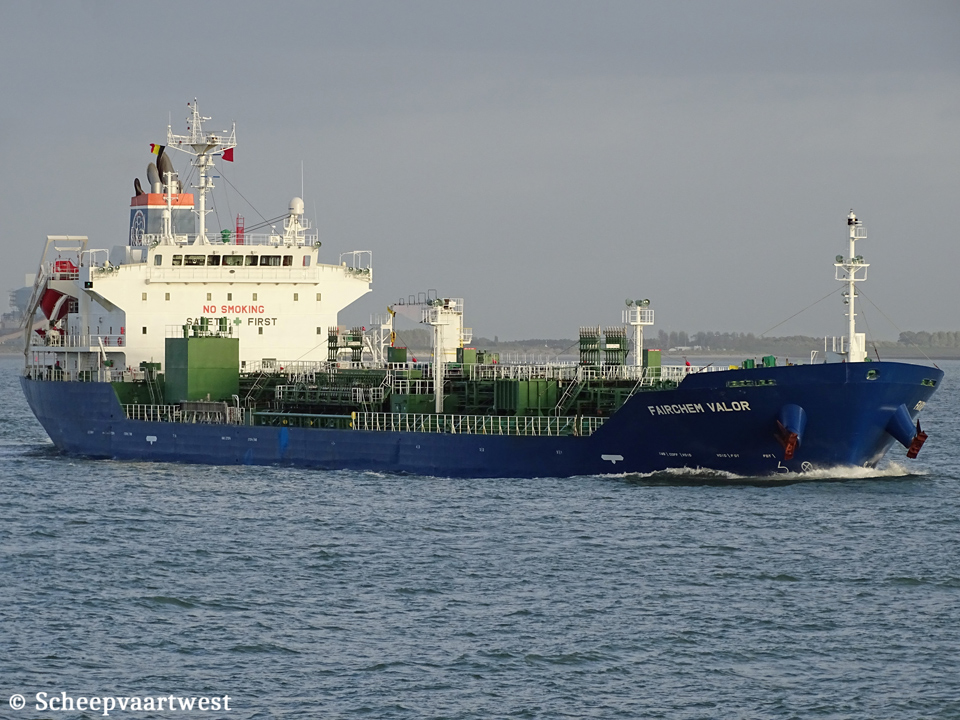

Westerschelde 08 October 2019 |
|
Name |
FAIRCHEM VALOR |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9791195 |
|
Call sign |
9V5055 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
13.146 t registered |
|
DWT |
22.292 t |
|
NT |
6.544 t registered |
|
Length |
149,93 m overall |
|
Breadth |
24,60 m moulded |
|
Draught |
Summer: 10,17 m |
|
Moulded L x B x D |
143,00 x 24,60 x 13,20 m |
|
Registered L x B x D |
143,02 x 24,60 x 13,20 m |
|
Keel to mast end |
39,76 m |
|
Freeboard |
Summer: 3.069 mm |
|
Depth |
13,20 m moulded |
|
Speed |
Service: 14,5 knots Max: 16,6 knots |
|
Built |
2019 |
|
Keel laid |
23/12/2015 |
|
Launch date |
07/11/2018 |
|
Date of completion |
03/04/2019 |
|
Builder |
Shin Kurushima shipyard Hiroshima Co. Ltd. Akitsu Japan |
|
Yard number |
5991 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Mitsubishi 6UEC45LSE - 2 stroke single acting 6 cylinder 450 x 1.840 mm combustion engine 5.200 kW / 7.070 hp at 103,0 rpm Manufacturer: Japan Engine Corporation |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter 430 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 103,0 rpm |
|
Generators |
3x Daihatsu 6DE-18 - 4 stroke 6 cylinder 185 x 280 mm diesel engines each Mcr 600 kW connected with generators each 570 ekW |
|
Bow thruster |
1x Tunnel thruster 691 kW / 940 bhp, forward |
|
Number of tanks |
18 + 2 slop tanks |
|
Cargo tank capacity 98% |
Liquid: 22.239 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
838 m³ |
|
Number of pumps |
18x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 1.119,80 m³ Fresh water: 409,49 m³ Ballast: 7.795 m³ |
|
Crew size |
16 |
|
Commercial manager |
Fairfield Chemical Carriers 2nd Floor, 21, River Road Wilton CT 06897-4151 USA |
|
ISM manager |
Synergy Navis Marine Private Limited 3rd Floor, ONYX, North Main Road, Koregaon Park Pune, Maharashtra, 411001 India |
|
Registered owner |
Grace Ocean Private Limited 35-01, OUE Downtown, 6, Shenton Way Singapore 068809 Republic of Singapore |
|
Latest data adjustment |
28 October 2021 |
