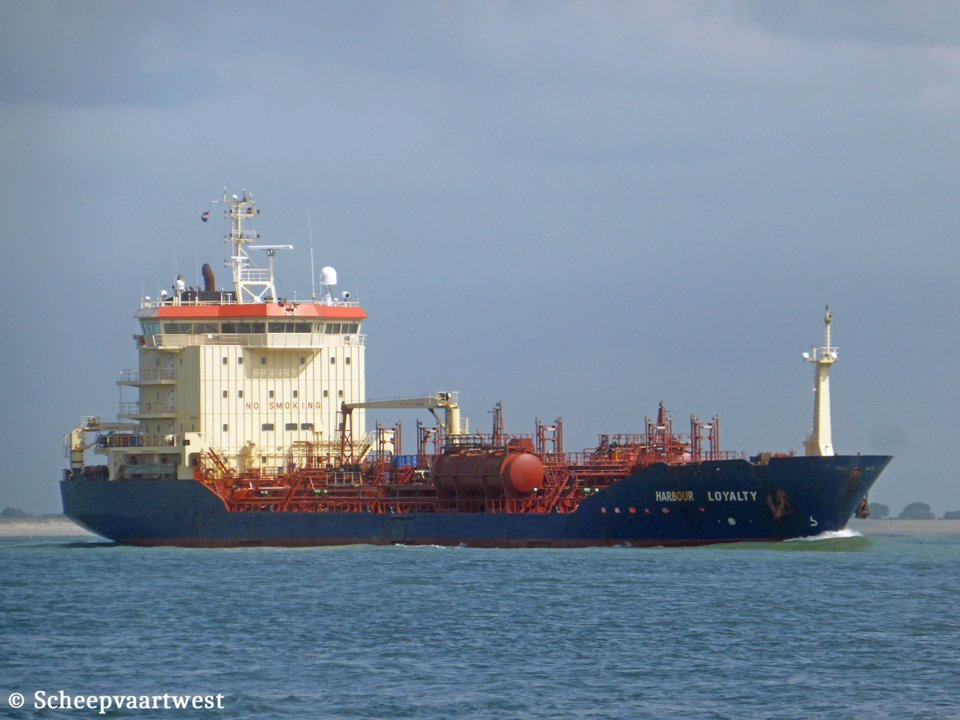

| Westerschelde 21 July 2015 |
|
Name |
HARBOUR LOYALTY |
|
Previous names |
2007 - 11/2011 Clipper Loyalty |
|
Type |
Chemical/Oil products tanker |
|
IMO-number |
9373929 |
|
Call sign |
C6WA3 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GRT |
6.522 t |
|
DWT |
9.942 t |
|
NRT |
3.220 t |
|
Displacement |
13.705 t |
|
Light ship |
3.770,40 t |
|
Length |
118,37 m overall |
|
Breadth |
19,00 m moulded |
|
Draught |
Summer: 8,23 m |
|
Moulded L x B x D |
112,00 x 19,00 x 10,10 m |
|
Registered L x B x D |
118,37 x 19,00 x 10,10 m |
|
Keel to mast end |
36,20 m |
|
Freeboard |
Summer: 1.891 mm |
|
Depth |
10,10 m moulded |
|
Speed |
Max: 14,0 knots Service: 13,0 knots |
|
Build |
2007 |
|
Keel laid |
30/12/2005 |
|
Launch date |
08/10/2006 |
|
Delivery date |
02/04/2007 |
|
Builder |
Yardimci Tersanesi A.S. Tuzla Turkey |
|
Yard number |
49 |
|
Hull material |
Steel |
|
Hull type |
Double hull and double bottom |
|
Main engine |
1x MAN-B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 5.954 hp at 173,0 rpm Manufacturer: MAN-B&W Diesel A/S,Alpha Diesel |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 395 mm |
|
Propellers |
1 |
|
Boilers |
2x Auxiliary thermal oil heater boilers each 0,68 PMA Manufacturer: Garioni Naval S.R.L |
|
Shaft generator |
1x AVK Type DSG62LI-1 - 500 kW |
|
Generators |
3x MAN D2842LE301 main diesel generatorsets each 500 kW |
|
Emergency generator |
1x MAN D2866TE diesel generatorset 187 kW |
|
Number of tanks |
12 |
|
Cargo tank capacity |
COT#1 (P&S): 667,192 m³ / 668,659 m³ COT#2 (P&S): 1.045,032 m³ / 1.039,074 m³ COT#3 (P&S): 1.308,256 m³ / 1.313,600 m³ COT#4 (P&S): 807,958 m³ / 808,116 m³ COT#5 (P&S): 1.207,656 m³ / 1.210,869 m³ Liquid: 11.346,27 m³ |
|
Number of pumps |
12x Cargo pumps each 200 m³/h 2x Cargo pumps each 100 m³ |
|
Slop tank capacity |
P&S: 95,832 m³ / 95,917 m³ |
|
Tank capacities |
Fuel oil: 647,30 m³ Fresh water: 67,14 m³ |
|
Manager |
Nordic Tankers Trading A/S Harbour House, Sundkrogsgade 21 2100 Copenhagen, O, Denmark |
|
Renamed |
04/2016 Meya Thailand, Bangkok - call sign: HSB5593 Owner & manager: AMA Marine Public Company Limited, Bangkok - Thailand 05/2024 Ata Ocean Barbados, Bridgetown - Call sign: 8PAA2 Manager: Ocean Tanker Isletmeciligi Sanayi Ve Ticaret Limited Sirketi - Turkey Registered owner: Anka Shipping Inc. |
|
Latest data adjustment |
07 October 2024 |
