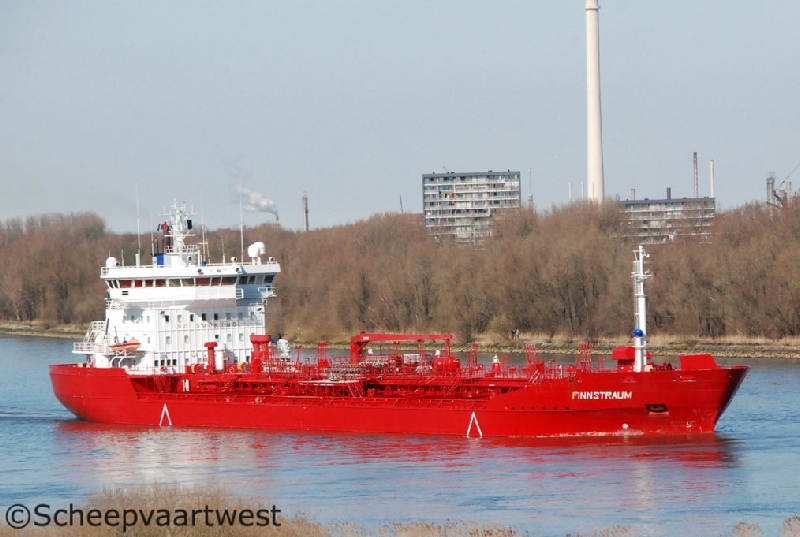

| Spijkenisse, Oude Maas 19 March 2011 |
|
Name |
FINNSTRAUM |
|
Type |
Tanker for chemicals and oil products |
|
IMO-number |
9172222 |
|
Call sign |
LAJF5 |
|
Flag |
Norway |
|
Port of registry |
Bergen |
|
GT |
9.956 t Suez: 10.580 t |
|
DWT |
16.028 t |
|
NT |
5.019 t Suez: 8.944 t Panama: 9.956 t |
|
Length |
140,20 m overall 132,20 m between perpendiculars |
|
Breadth |
22,15 m extreme |
|
Draught |
8,75 m |
|
Keel to masthead |
34,20 m |
|
Freeboard |
Summer: 2,75 m |
|
Depth |
11,50 m moulded |
|
Speed |
14,5 knots |
|
Built |
1999 |
|
Keel laid |
15.06.1998 |
|
Launch date |
20.05.1999 |
|
Date of completion |
12.07.1999 |
|
Builder |
Aker Aukra Industrier AS |
|
Yard number |
100 |
|
Hull material |
Steel |
|
Hull type |
Double bottom with hopper Double side with top wing |
|
Main engine |
1x Wärtsilä W9L38 diesel engine Manufacture: Wärtsilä Nederland B.V. |
|
Reduction gear |
1x Rolls-Royce Marine 6000 AGC-KP |
|
Propeller |
1x Controllable pitch |
|
Boilers |
Auxiliary boiler, vertical shell type AQ9 Auxiliary boiler, exhaust gas smoke tube AQ2 Builder: Aalborg Industries A/S |
|
Generators |
2x TAMD 163 A-A main diesel generatorsets Manufacture: Volvo Penta AB 1x Wärtsilä W6L20 main diesel generatorset |
|
Emergency generator |
1x Volvo TMD102 diesel generatorset Manufacture: AB Volvo Penta |
|
Bow thruster |
1x 745,7 kW / 1.000 bhp |
|
Cargo capacity 98% |
17.168 m³ excluding slop tanks |
|
Manifolds distance |
Bow to centre manifold: 72,00 m Stern to centre manifold: 68,20 m Distance bridge front to centre of manifold: 41,75 m Distance between cargo manifold centres: 200 mm Distance ships rail to manifold: 4.000 mm Distance manifold to ships side: 4.300 mm Top of rail to centre of manifold: 2.100 mm Distance main deck to centre of manifold: 3.300 mm |
|
Loading rate |
Maximum loading rate for homogeneous cargo per manifold connection: 300 m³/h Maximum loading rate for homogeneous cargo loaded simultaneously through all manifolds: 2.000 m³/h |
|
Cargo pumps |
20x Centrifugal pumps each 300 m³/h 1x Centrifugal pumps 70 m³/h |
|
Ballast pumps |
2x Centrifugal pumps each 600 m³/h |
|
Ballast capacity |
6.912 m³ |
|
Lifting equipment |
2x Cranes - SWL 2,0 t Maximum outreach: 4,20 m |
|
Manager |
Utkilen AS |
|
Owner |
Finnstraum KS |
|
Previous owners |
1999 - 2009 Utkilen AS |
