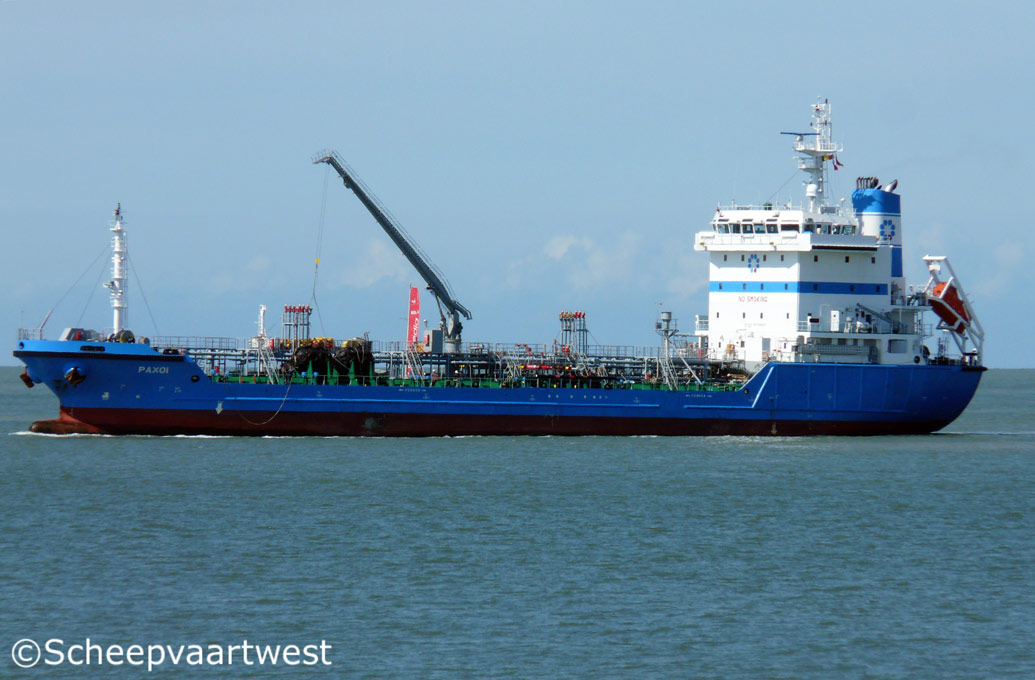

| Zeebrugge 23 August 2012 |
 |
 |
 |
 |
 |
||||

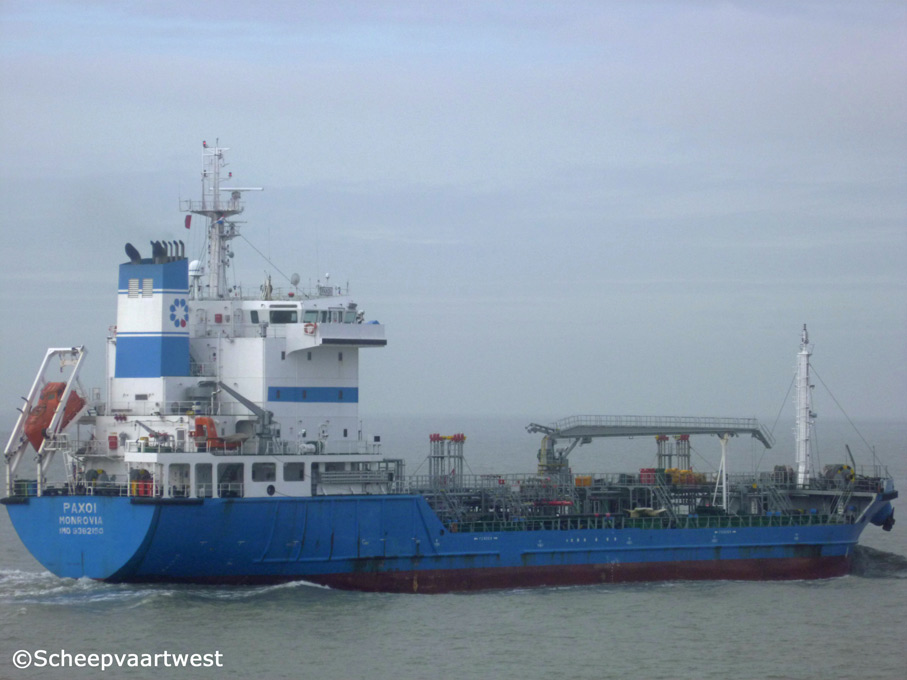

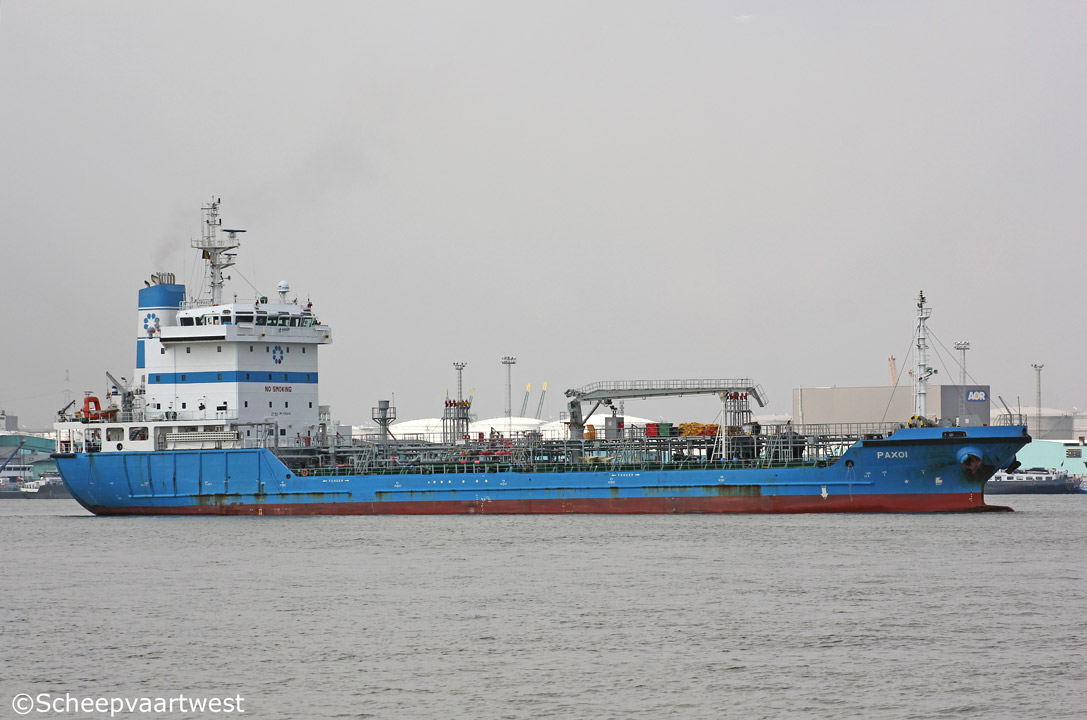

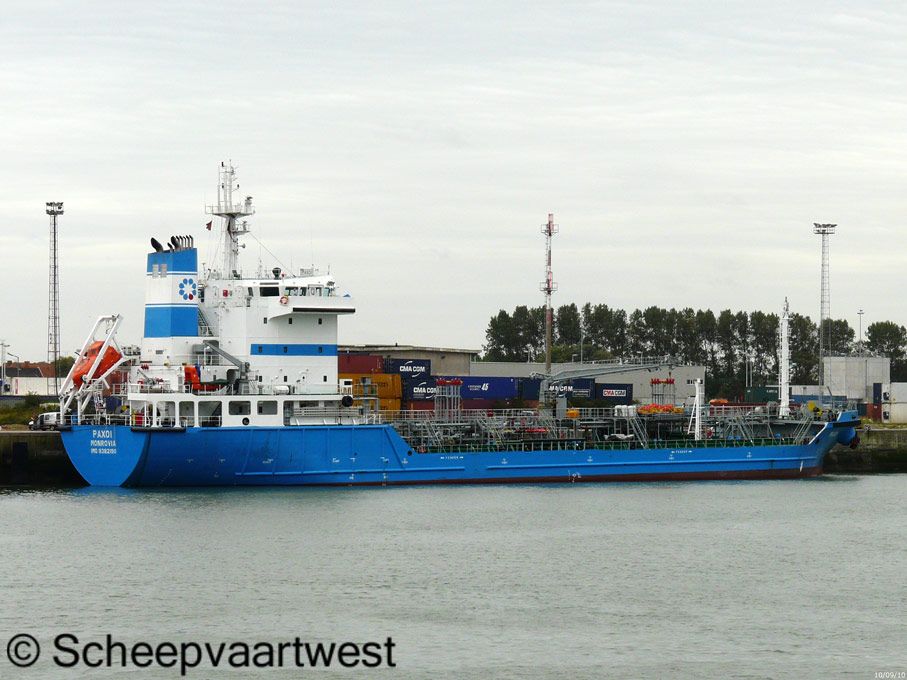

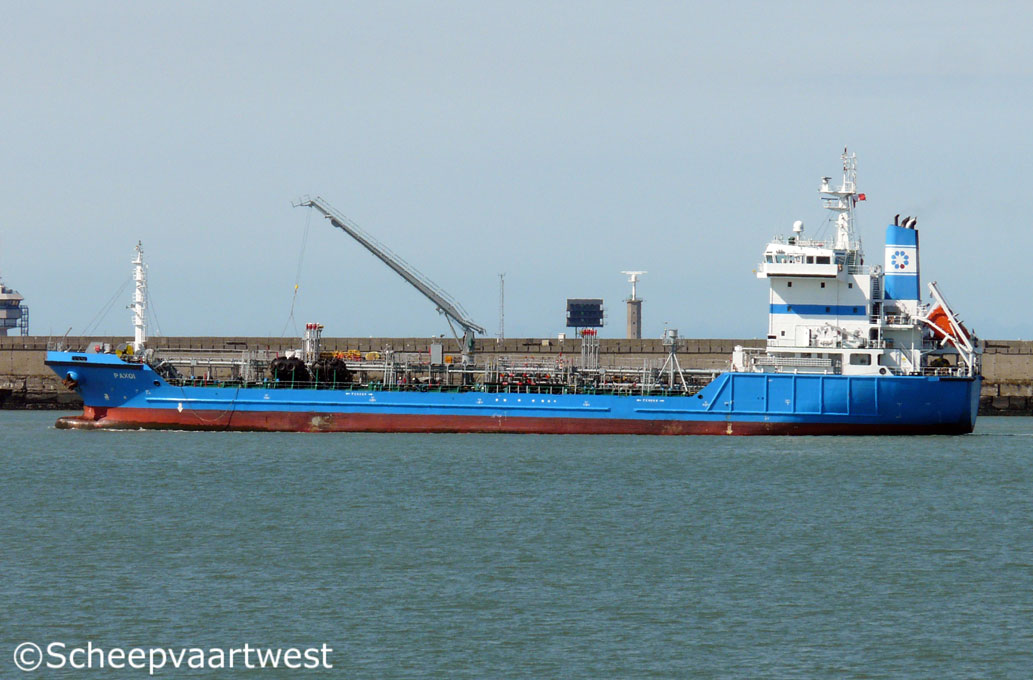

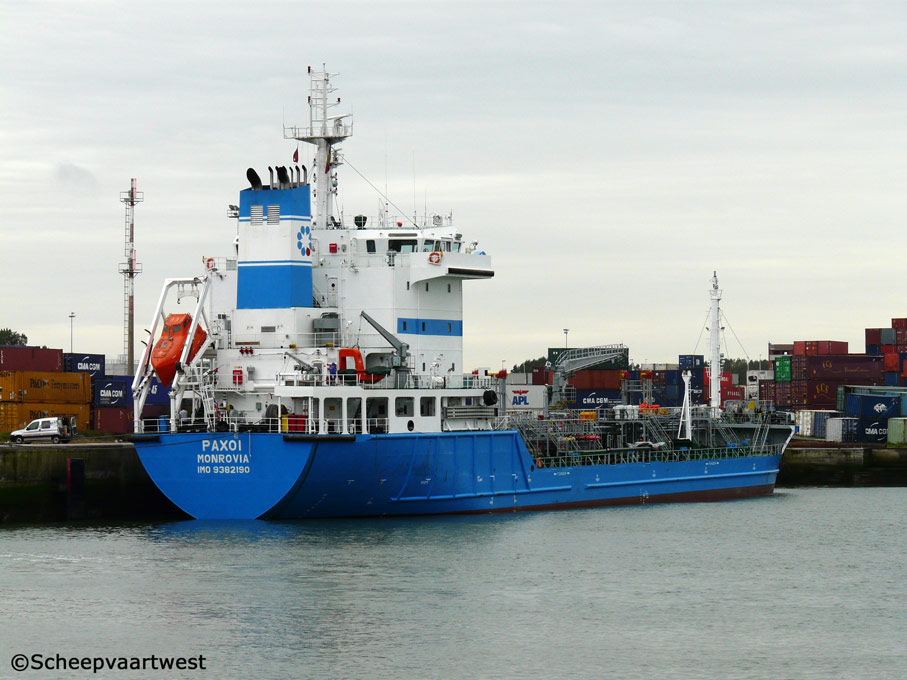

| Zeebrugge 13/08/12 | Zeebrugge 10/09/10 | Zeebrugge 10/09/10 | Westerschelde 19/02/14 | Antwerpen 10/04/14 | ||||
|
Name |
PAXOI |
|
Type |
Tanker for oil |
|
IMO-number |
9382190 |
|
Official number |
14431 |
|
Call sign |
A8TU5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
4.580 t registered |
|
DWT |
6.310 t |
|
NT |
1.967 t registered |
|
Length |
102,70 m overall 95,20 m between perpendiculars |
|
Breadth |
17,82 m over all |
|
Draught |
Summer: 6,613 m |
|
Depth |
8,80 m |
|
Speed |
At summer draft 12,8 knots |
|
Built |
2009 |
|
Contact date |
18.10.2006 |
|
Keel laid |
21.07.2008 |
|
Launch date |
16.04.2009 |
|
Date of completion |
20.11.2009 |
|
Builder |
Qingdao Hyundai Shipbuilding Co. Ltd. |
|
Yard number |
210 |
|
Hull material |
Steel |
|
Hull type |
Double bottom |
|
Main engine |
1x Hyundai-Himsen 9H25/33P diesel engine - 2.650 KW Manufacture: Hyundai Engine & Machinery Co. Ltd. |
|
Propellers |
1 |
|
Boilers |
1x Oil-fired steam boiler 1x Exhaust gas economiser Manufacture: Aalborg Industries AS |
|
Generators |
3x Cummins KTA19 diesel generatorsets Manufacture: Cummins Inc. |
|
Bow thruster |
320 kW |
|
Number of cargo tanks |
10 |
|
Tank capacity 100% |
Cargo tank 1 P&S 1.152 m³ Cargo tank 2 P&S 1.357,50 m³ Cargo tank 3 P&S 1.377 m³ Cargo tank 4 P&S 1.377,50 m³ Cargo tank 5 P&S 1.519 m³ Slop tanks P&S 243,5 m³ Bunker tank capacity 397 m³ |
|
Cargo tank volume |
6.647 m³ at 98% |
|
Slop tank volume |
238 m³ at 98% |
|
Segregations |
3 |
|
Tank heating system |
Steam, heating coils in all cargo tanks System sufficient to maintain cargo temperature at 65°C |
|
Cargo pumps |
3x Screw, self-priming pumps: 2x 750 m³ each 1x 300 m³ |
|
Bunkerjib |
1x SWL 2,0 t / 13,00 m with 2 separate lines and hoses for DPP and CPP products |
|
Oilbooms |
Total length of oilboom 30,00 m - 10,00 m high |
|
Bunker hoses |
IFO 6” MGO 4” |
|
Fendering |
2 Yokohama fenders, diameter 1,5 m to be used on both sides |
|
Mooring equipment |
2 + 2 Windlasses each one single drum and warping head |
|
Anchor |
Length: 495 m Diameter: 46 mm |
|
Lifting equipment |
1x Hose crane - SWL 2,0 t |
|
Crew |
14 |
|
Manager |
Aegean Bunkering Services Inc. |
|
Owner |
Paxoi Marine S.A. Liberia |
|
Previous owner |
2009 - 2009 Aegean Bunkering Services Inc. |
|
Latest data adjustment |
12 February 2015 |
