Antwerpen 07 May 2015 |
 |
| Antwerpen 07/05/15 |
|
Name |

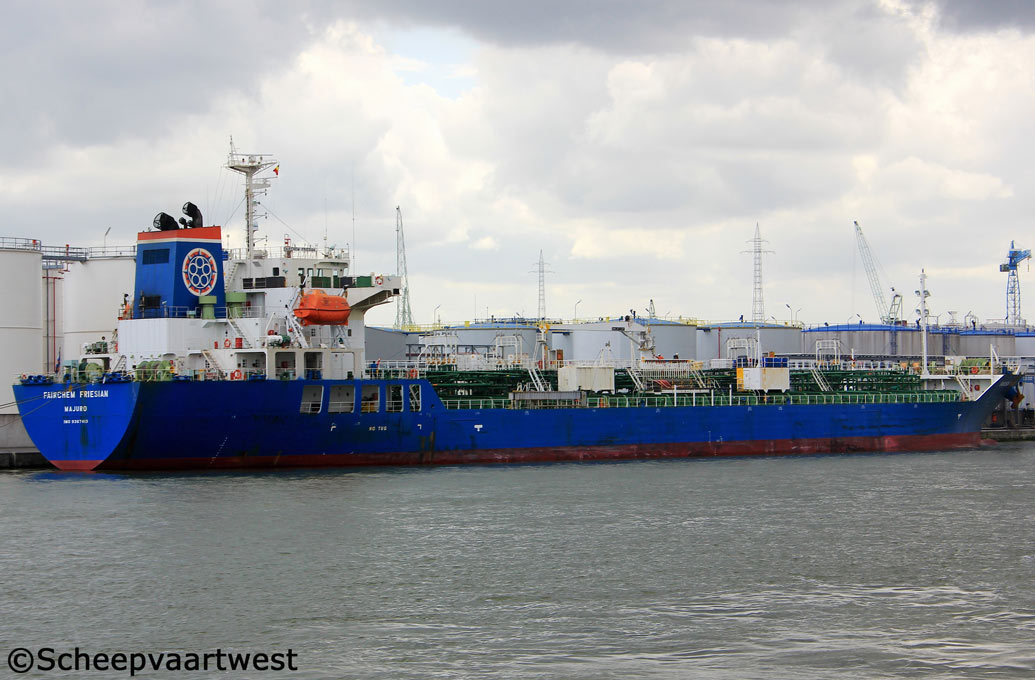

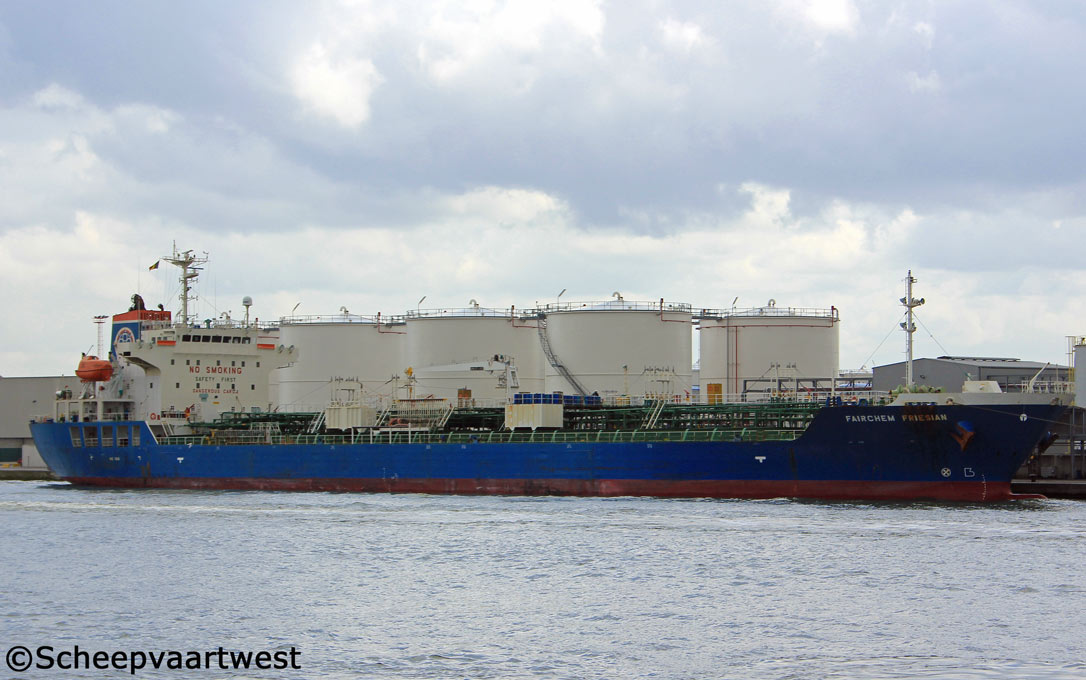

FAIRCHEM FRIESIAN |
|
Type |
Tanker for oil & chemicals |
|
IMO-number |
9367413 |
|
Call sign |
V7PU7 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
GT |
11.640 t registered |
|
DWT |
Summer: 21.209 t |
|
NT |
6.524 t registered Suez: 10.897,35 t Panama: 9.793 t |
|
Length |
145,53 m overall |
|
Breadth |
23,73 m moulded |
|
Draught |
Summer: 10,11 m |
|
Moulded L x B x D |
137,00 x 23,73 x 13,35 m |
|
Registered L x B x D |
137,92 x 23,73 x 13,35 m |
|
Freeboard |
3.268 mm |
|
Depth |
13,35 m moulded |
|
Speed |
16,5 knots |
|
Built |
2009 |
|
Keel laid |
15.12.2008 |
|
Launch date |
13.02.2009 |
|
Date of completion |
16.04.2009 |
|
Builder |
Usuki Shipbuilding Co., Ltd. |
|
Yard number |
1715 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN B&W - 2 stroke single acting 6 cylinder 420 x 1.764 mm diesel engine 6.150 kW at 136,0 rpm Manufacturer: Imex Co., Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 420 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 16,04 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generators - 1.790 kVA |
|
Number of tanks |
20 |
|
Cargo tank capacity 98% |
22.195 m³ including slop tanks |
|
Segregations |
20x Natural segregations |
|
Pumps |
14x Framo deepwell pumps - 250 m³/h each 6x Framo deepwell pumps - 200 m³/h each |
|
Tank capacities |
Fuel oil: 1.122 m³ Fresh water: 221 m³ Water ballast: 7.797 m³ |
|
Manager |
Anglo Eastern Shipmanagement Singapore Pte. Ltd. |
|
Owner |
Fairfield Chemical Carriers, Inc |
|
Registered owner |
Eurus Maritime S.A. |
|
Latest data adjustment |
20 July 2015 |
