Westerschelde 25 May 2017 |
 |
 |
 |
||
| Westerschelde 25/05/17 | Westerschelde 09/03/12 | Westerschelde 09/03/12 | ||
|

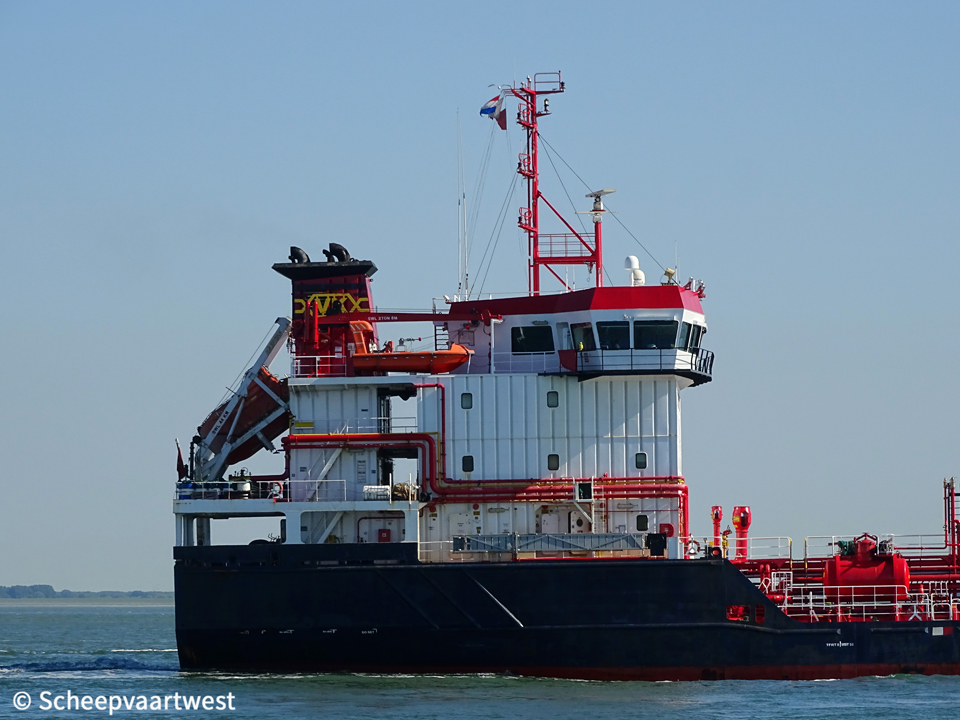

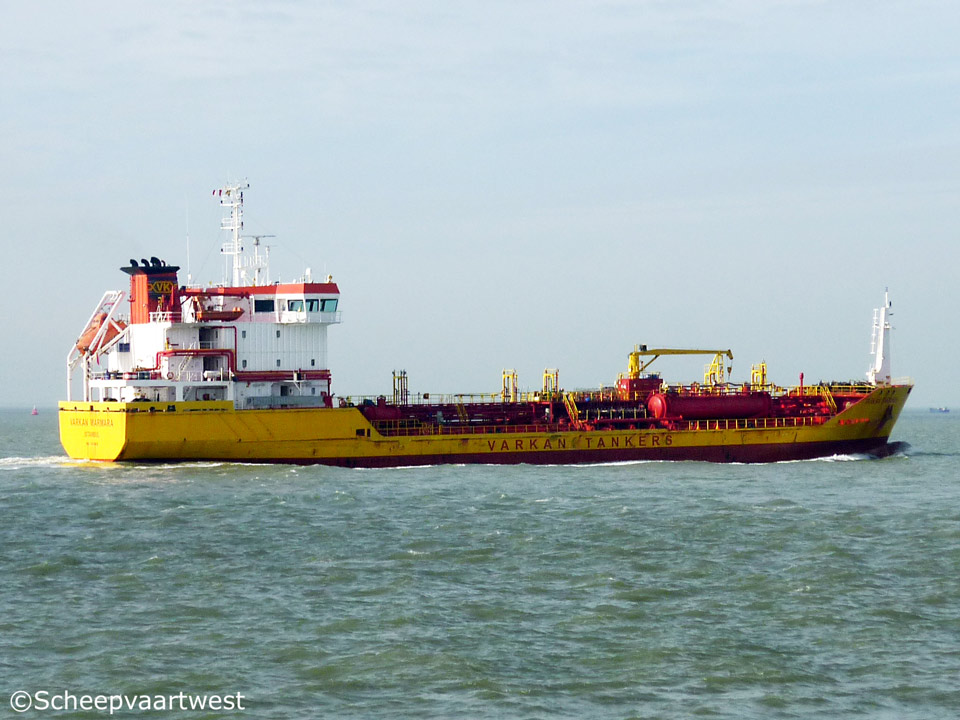

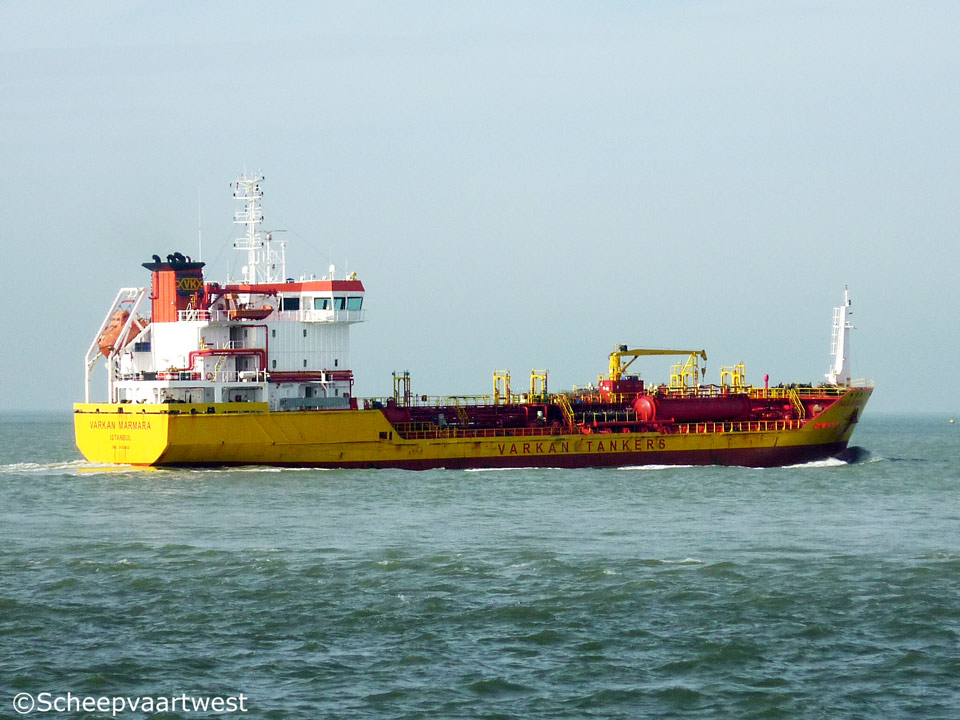

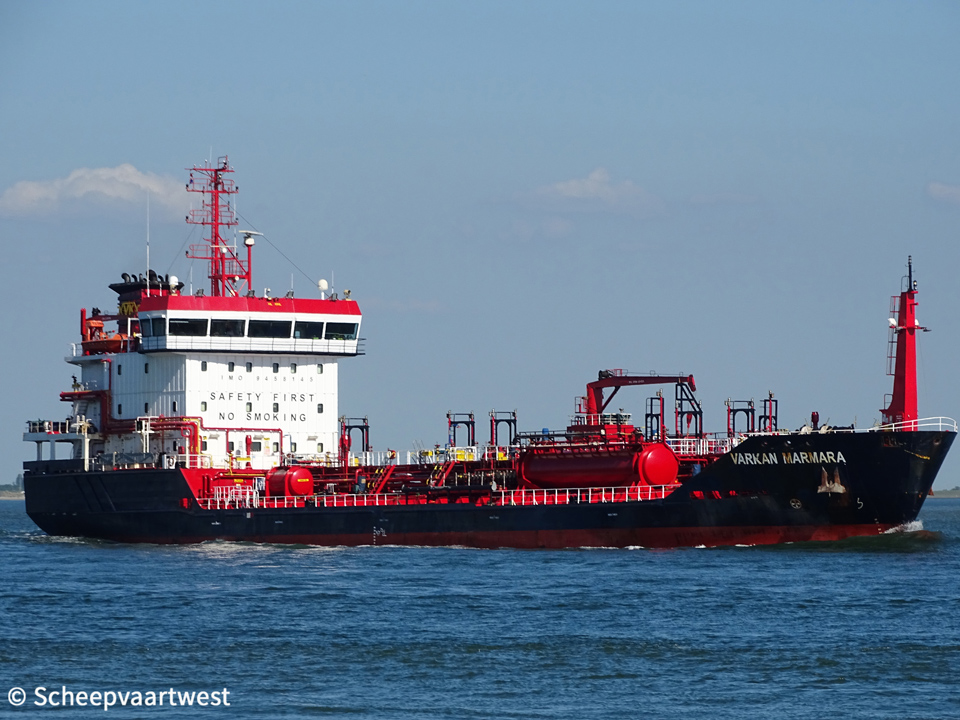

Name |
VARKAN MARMARA |
|
Previous names |
2009 build as: Barbaros Vardal |
|
Type |
Oil/chemical tanker |
|
IMO-number |
9458145 |
|
Call sign |
TCTN8 |
|
Flag |
Turkey |
|
Port of registry |
Istanbul |
|
GT |
3.478 t registered |
|
DWT |
Summer: 4.865,26 t |
|
NT |
1.506 t registered |
|
Length |
99,84 m overall 94,76 m between perpendiculars |
|
Breadth |
15,60 m moulded |
|
Draught |
Summer: 6,10 m |
|
Moulded L x B x D |
95,16 x 15,60 x 7,60 m |
|
Registered L x B x D |
95,16 x 15,60 x 7,60 m |
|
Freeboard |
Summer: 1.512 mm |
|
Depth |
7,60 m moulded |
|
Speed |
Max.: 16,0 knots Service: 13,0 knots |
|
Built |
2009 |
|
Keel laid |
13/02/2008 |
|
Launch date |
13/08/2008 |
|
Date of completion |
23/01/2009 |
|
Builder |
Dentas Gemi Insaa Ve Onarim San. A.S. Turkey |
|
Yard number |
NB94 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x STX/MAN-B&W 9L28/32A - 4 stroke single acting 9 cylinder 280 x 320 mm combustion engine 2.205 kW / 2.996 hp at 775 rpm Built: 23/04/2008 Manufacturer: STX Heavy Industries Co., Ltd., Pusan - South Korea |
|
Propeller shaft |
1x Oil lubrication shaft without monitoring device Diameter: 260 mm |
|
Propellers |
1x Screw propeller controllable pitch - aft at 137 rpm |
|
Boilers |
1x Thermal oil heater - 10,0 bar Evaporation: 2.000 kW 1x Thermal oil heater - 10,0 bar Evaporation: 1.500 kW Manufacturer: Hoch-Temperatur Industreanlagen GmbH |
|
Shaft generator |
1x 600 kVA - 480 kW |
|
Generators |
3x Main diesel generatorsets each 488 kVA - 390 kW - 530 hp |
|
Emergency generator |
1x Diesel generatorset 187 kVA - 150 kW - 272 hp |
|
Number of cargo tanks |
10 |
|
Tank capacity 98% |
5.243,65 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
129,26 m³ |
|
Segregation |
12 |
|
Pumps |
10x Centrifugal cargo pumps each 185 m³ 2x Centrifugal cargo pumps each 70 m³ |
|
Manifolds |
Box to centre manifolds: 43,3 m |
|
Tank capacities |
Fuel oil: 299,4 m³ Fresh water: 202,5 m³ |
|
Lifting equipment |
2x Cranes - SWL 5,0 t each |
|
Manager |
Veysel Vardal Gemicilik Denizcilik Ve Ticaret Anonim Sirket Istanbul Turkey |
|
Operator |
Varkan Group |
|
Registered owner |
Varkan Gemi Insa Sanayi AS |
|
Latest data adjustment |
24 May 2020 |
