Endelo Swan - IMO 9371725

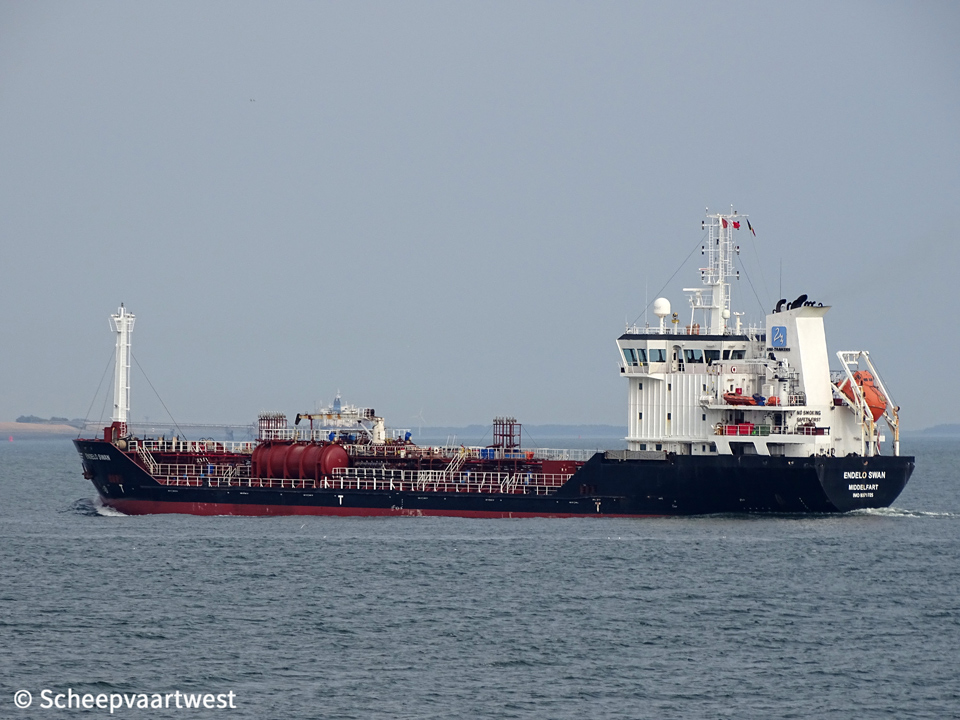

Westerschelde 22 July 2018

Name

ENDELO SWAN

Previous names

2007 - 06/2007 Duzgit Prosperity

06/2007 - 05/2012 Erria Dorthe

Type

Chemical & oil tanker

IMO-number

9371725

Call sign

OUYR2

Flag

Denmark

Port of registry

Middelfart

Previous flags

2007 - 2012 Malta, Valletta

GT

3.219 t

DWT

Summer: 4.671,23 t

NT

1.424 t

Length

99,90 m overall

93,95 m between perpendiculars

Breadth

15,00 m extreme

Draught

Summer: 6,04 m

3,80 m ballast

Height from keel to mast

33,00 m

Depth

7,40 m moulded

Speed

13,5 knots

Built

2007

Keel laid

27/12/2005

Launch date

16/12/2006

Date of completion

21/05/2007

Builder

Celiktrans Deniz Insaat Ltd. Sti.
Istanbul
Turkey

Yard number

31

Hull material

Steel

Hull type

Double hull

Main engine

1x MAK 8M25 - 8 cylinder combustion engine 2.640 kW at 750 rpm

Builder: Caterpillar Motoren Inc., Lafayette - USA

Propellers

1x Controllable pitch propeller

Boilers

1x Thermal oil heater, oil fired

1x Thermal oil heater, exhaust heated

Shaft generator

1x 848 kW

Generators

3x Volvo TAMD 165 A-A main diesel generatorsets each 428 kW

Emergency generator

1x Volvo Penta D7A-T RC diesel generatorset 104 kW

Bow thruster

1x 380 hp

Number of cargo tanks

12

Cargo tank capacity 98%

4.953,9 m³

Number of slop tanks

2

Slop tank capacity 98%

118,83 m³

Number of segregations

13

Pimps

2x Ballast pumps each 220 m³/h

Manifolds

Distance from bow to centre manifold: 44.00 m

Distance from stern to centre manifold: 55.90 m

Distance between manifolds: 0.66 m

Distance from ship side to manifold: 2.95 m

Distance from deck to manifold: 1,9 m

Tank capacities

Ballast: 1.885,44 m³

Anchor equipment

Length: 467,50 m

Diameter: 38 mm

Cargo gear

Main crane - SWL 5,0 t

Provision crane - SWL 2,0 t

Manager

Uni-Tankers A/S
Turbinevej 10
5500 Middelfart
Denmark

Operator

Uni-Tankers A/S

Registered owner

Uni-Tankers M/T Endelo Swan ApS

Latest data adjustment

25 February 2019
