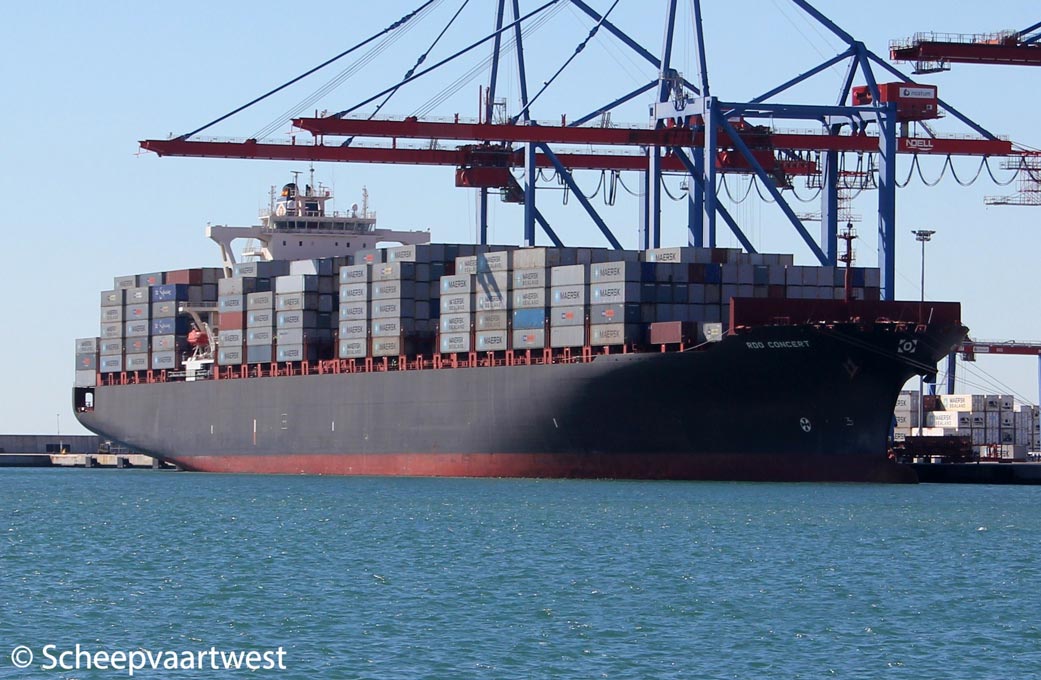

RDO Concert 02
Malaga - Spain 13 february 2013



Name

RDO CONCERT

Previous names

2009-01.2012 UASC Yanbu

Type

Cellular containership

IMO-number

9415844

Call sign

A8TH7

Flag

Liberia

Port of registry

Monrovia

GT

75.604 t

DWT

Summer: 85.622 t

NT

45.843 t

Number of 20ft containers

6.464

Container capacity 14t

4.840

Reefer capacity

550

Length

304,17 m overall

282,00 m between perpendiculars

293,41 m registered

Breadth

40,00 m registered

Draught

14,50 m

Air draft

59,54 m

Freeboard

5.659 mm

Depth

24,80 m moulded

Speed

Service: 25,6 knots

Built

2009

Keel laid

22.06.2009

Launch date

11.09.2009

Date of completion

08.12.2009

Builder

Hyundai Heavy Ind. Co., Ltd.
1, Cheonha-dong, Dong-gu
Ulsan, 682-792 Kyongsang-namdo
Republic of Korea

Yard number

1946

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

10

Continuous decks

2

Main engine

1x Hyundai MAN B&W 10K98MC6 - 2 stroke 20 cylinder 980 x 2.660 mm diesel engine - 57.200 kW at 94,0 rpm

Year of manufacture: 2009

Manufacturer: Hyundai Heavy Industries Co., Ltd.
1, Jeonha-dong, Dong-gu
Ulsan ,682-792 Kyongsang-namdo
Republic of Korea

Propellers

1x Solid propeller (keyless) - aft at 94,0 rpm

Boilers

1x Steam boiler, oil fired - 7,85 bar

Heating surface: 76,2 m²

1x Steam boiler, exhaust gas heated - 7,85 bar

Heating surface: 670,3 m²

Year of manufacture: 2009

Manufacturer: KangRim Heavy Industries Co., Ltd.
40, Wongnam-dong
Changwon ,642-290 Kyongsang-namdo
Republic of Korea

Electric installations

4x Plants each 450 V - 2.733,3 kVA

1x Plant 450 V - 313 kVA

1x Plant 24 V - 15 Ah

1x Plant 24 V - 17 Ah

1x Plant 24 V - 200 Ah

1x Plant 24 V - 215 Ah

1x Plant 24 V - 300 Ah

Generators

4x Main diesel generatorsets each 2.733,3 kVA / 2.186,6 kW

Emergency generator

1x Diesel generatorset 313 kVA

Batteries

12x Batteries for other purpose each 300 Ah

1x Battery for start emergency engine 215 Ah

12x Batteries for UPS radio each 200 Ah

1x Battery for other purpose 17 Ah

1x Battery for automation 15 Ah

Compressed air receivers

2x Receivers each 15.500 litres - 30,0 bar

1x Receiver 250 litres - 30,0 bar

1x Receiver 2.000 litres - 7,0 bar

1x Receiver 200 litres - 7,0 bar

Bow thruster

1x Transverse thruster - 2.500 kW, forward

Anchor equipment

3x Anchors weight each 16.900 kg

Chain length: 742,50 m

Cargo gear

None

Crew size

28

Manager

Anglo-Eastern Ship Management Ltd.
23rd Floor, CEF Life Tower 248, Queen's Road East
Wanchai
Hong Kong
Special Administration Region of P.R. China

Owner

D. Oltmann Reederei GmbH & Co. KG

Martinistrasse 21
28195 Bremen
Germany

Registered owner

Deocon Navigation Inc.
80, Broad Street
1000 Monrovia
Republic of Liberia

Last update

28.02.2013
