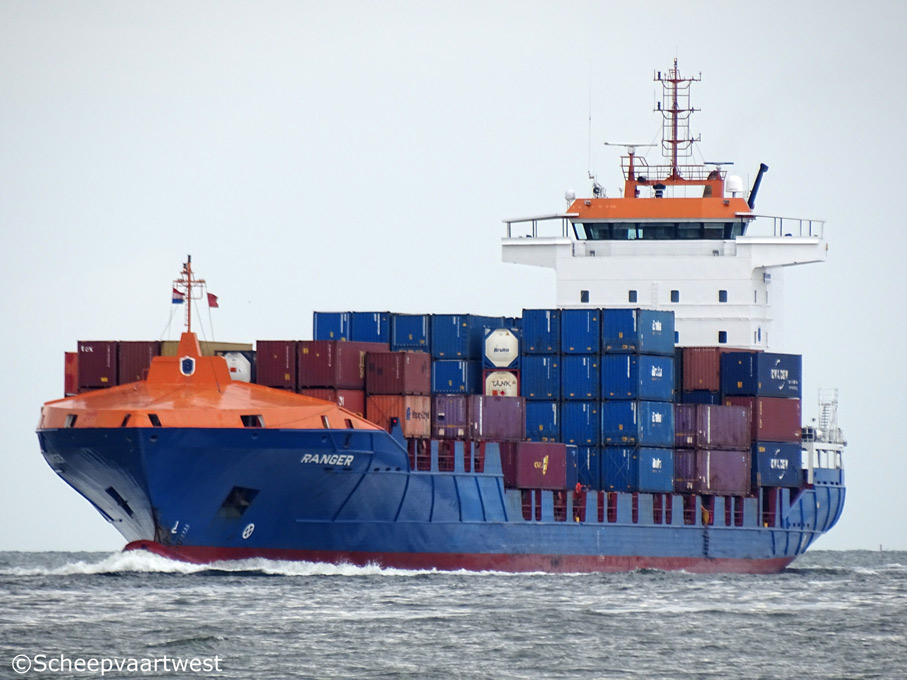

Ranger 01

Westerschelde 15 June 2016

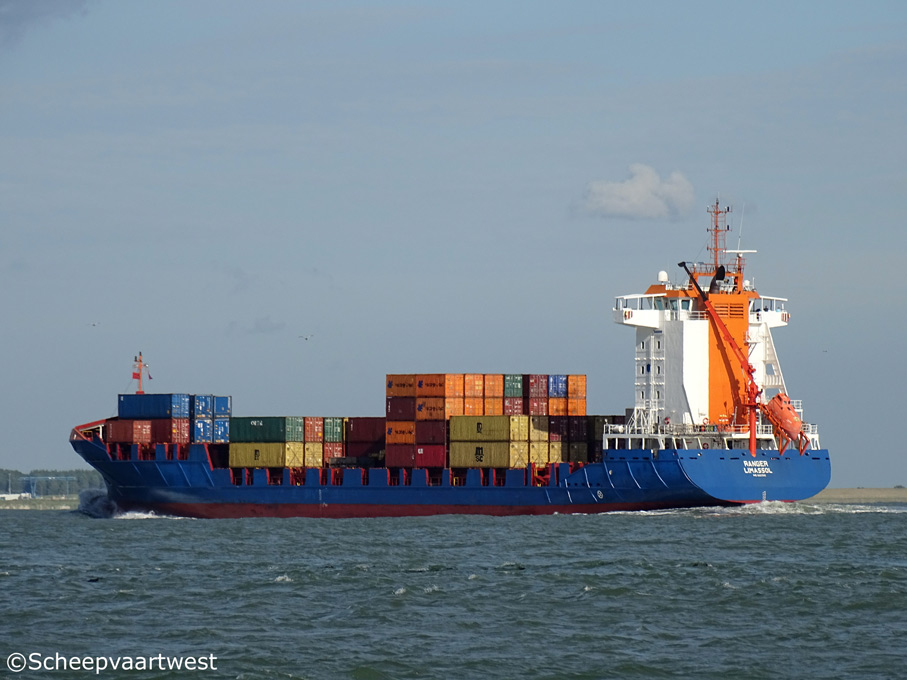

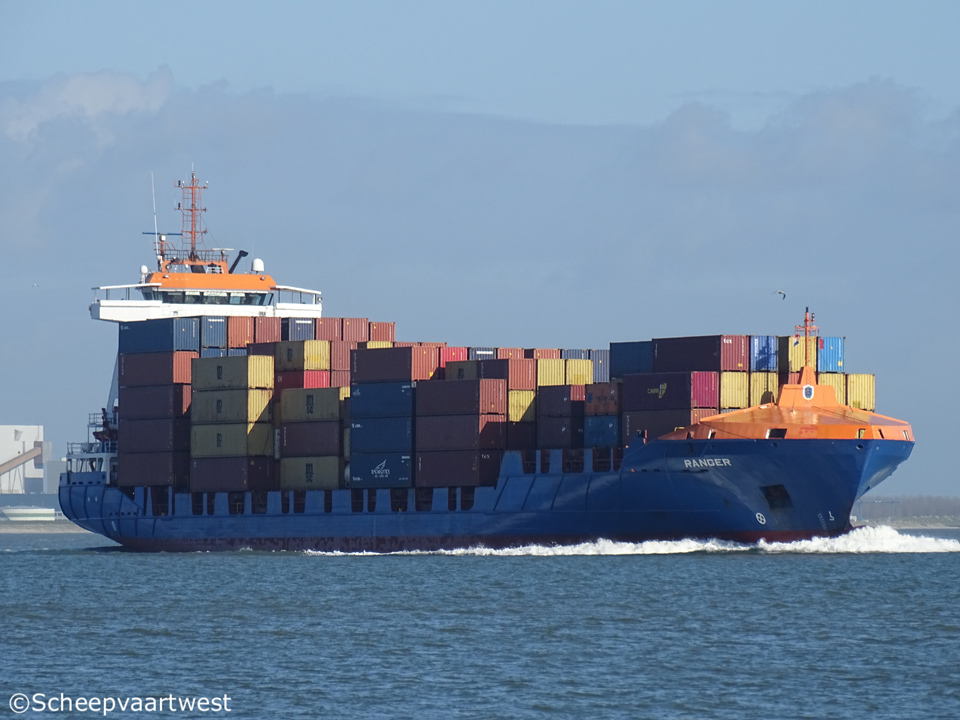

Ranger 02   Ranger 03
Westerschelde 08/08/16 Westerschelde 25/03/16



Name

RANGER

Previous names

2005 Smaland

2007 Jork Ranger

2008 Eucon Progress

2009 Jork Ranger

Type

Containership

IMO-number

9322542

Call sign

C4FA2

Flag

Cyprus

Port of registry

Limassol

GT

7.852 t

DWT

9.288,2 t

NT

3.363 t

Number of 20ft containers

804

Container capacity 14t

518

Reefer capacity

120

Length

140,60 m overall

130,68 m registered

Breadth

22,02 m extreme

21,79 m registered

Draught

7,32 m

Forecastle

37,92 m

Poop

9,60 m

Depth

9,50 m moulded

Speed

18,0 knots

Built

2005

Keel laid

29.06.2004

Launch date

27.05.2005

Date of completion

27.10.2005

Builder casco

Santierul Naval Damen Galati S.A.
Strada Moruzzi Alexandru 132
800223 Galati, Galati
Romania

Yard number: 1040

Builder completion

Damen Hoogezand Scheepswerf B.V.
Foxtol
The Netherlands

Yard number: 846

Hull material

Shipbuilding steel (standard)

Hull type

Double bottom

Watertight bulkheads

5

Continuous decks

1

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm diesel engine - 8.400 kW at 500 rpm

Year of manufacture: 2005

Manufacturer: Caterpillar Motoren GmbH & Co. KG
Falckensteiner Str. 2
24159 Kiel
Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 140 rpm

Boilers

1x Thermal oil heater, exhaust gas heated - 10,0 bar

Heating Surface: 126,0 m²

Year of manufacture: 2005

Manufacturer: Alfa Laval Aalborg B.V.
Ohmweg 8
3208 KE Spijkenisse
The Netherlands

1x Thermal oil heater, oil fired - 13,0 bar

Heating Surface: 43,0 m²

Year of manufacture: 2005

Manufacturer: Alfa Laval Aalborg A/S
Gasvaerksvej 24
9100 Aalborg
Kingdom of Denmark

Electric installations

1x Plant 440 V - 2.000 kVA

1x Plant 440 V - 123,8 kVA

1x Plant 24 V - 140 Ah

1x Plant 24 V - 600 Ah

Shaft generator

1x 2.000 kVA / 1.600 kW

Generators

2x Scania DI-16 44M diesel generatorsets each 433 kW

Emergency generator

1x Caterpillar 3056 T diesel generatorset 123,8 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 30,0 bar

1x Receiver 500 litres - 11,0 bar

Bow thruster

1x Transverse thruster - 700 kW, forward

1x Transverse thruster - 500 kW, aft

Tank capacities

Ballast: 4.597,8 m³

Anchor equipment

3x Anchors weight each 4.890 kg

Chain length: 550,00 m

Diameter: 54 mm

Cargo gear

Gearless

Manager

Bernd Becker Shipmanagement GmbH & Co. KG

Registered owner

Contarga Ltd.

Latest data adjustment

17 July 2016
