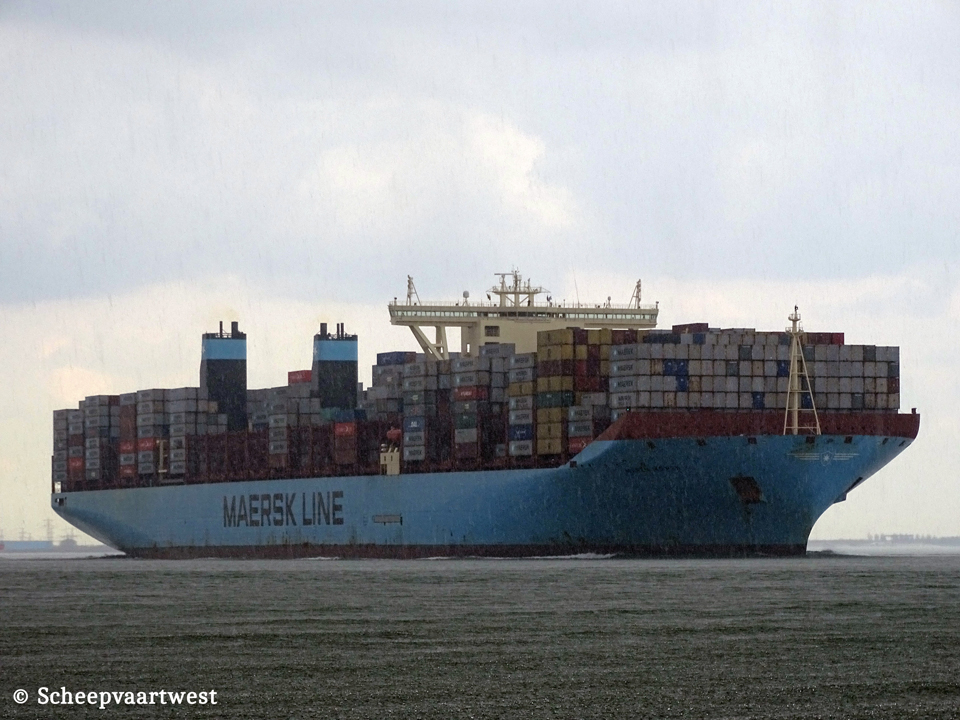

Maren Maersk IMO 9632129 01
Westerschelde 15 April 2018


Name

MAREN MAERSK (MAREN MÆRSK)

Type

Cellular Contaierschip

IMO-number

9632129

Call sign

OWTG2

Flag

Denmark

Port of registry

Ringkøbing

GT

194.849

Suez: 199.445,19 t

DWT

214.120,7 t

NT

89.317 t

Suez : 174.526,88 t

Displacement

277.814,6 t

Number of 20ft containers

In hold: 7.600

On deck: 10.740

Total: 18.340

Container capacity 14t

10.562

Reefer capacity

600

Length

399,20 m overall

376,21 m between perpendiculars

Breadth

59,00 m moulded

Draught

Summer: 14,50 m

Freeboard

6.845 mm

Depth

30,30 m moulded

Speed

Max: 21,4 knots

Service: 19,0 knots

Built

2014

Keel laid

30/06/2014

Launch date

13/09/2014

Delivery date

29/12/2014

Builder

Daewoo Shipbuilding & Marine Engineering Co., Ltd. - Geoje Yard

3370 Geojedaero, Geoje-Si, Gyeongsangnam-Do, 656-714

South Korea

Yard number

4266

Hull material

Steel

Continuous decks

1

Main engine

2x Doosan/MAN-B&W 7S80ME-C9 - 2 stroke single acting 7 cylinder 800 x 3.450 mm combustion engines each Mcr 29.300 kW at 77,7 rpm

Builder: Doosan Engine Co Ltd - South Korea

Propellers

2x Fixed pitch propeller - aft at 72,0 pm

Manufacturer: Mecklenburger Metallguss GmbH

Boilers

1x Auxiliary boiler Aalborg OS - 9,0MPa

2x G/E Exhaust Gas Economizer Aalborg XS-TC7A - 12,5 MPa

2x H.P. Exhaust gas economizer Aalborg XW-TG(HP) - 14,0 MPa

2x L.P. Exhaust gas economizer Aalborg XW-TG(LP) - 8,0 MPa

Manufacturer: Alfa Laval Qingdao Ltd.

Shaft generator

2x each 3.000 kW

Manufacturer: Siemens AG I AC 222

Generators

1x Main diesel generatorset 4.300 kW

2x Main diesel generatorsets each 2.800 kW

1x T/G generator 6.000 KW

Manufacturer: HHI Electro Electric System

Bow thruster

2x Tunnel thruster each 2.500 kW / 3?399 bhp, forward

Tank capacities

Ballast: 63.173,20 m³

Lub oil: 588,60 m³

Fuel oil: 13.579,80 m³

Diesel oil: 1.661,40 m³

Fresh water: 1.050,30 m³

Lifting equipment

1x Engine room crane Port - SWL 10,0 t

1x Engine room crane Starboard - SWL 10,0 t

1x Monorail crane - SWL 12,5 t

1x Provision crane Port - SWL 2,0 t

1x Provision crane Starboard - SWL 5,0 t

Manufacturer: Dongnam Marine Crane Co., Ltd.

Cargo gear

Gearless

Crew size

32

Manager

Maersk Line A/S

Esplanaden 50

1098 Copenhagen, K

Denmark

Registered owner

Maersk A/S

Esplanaden 50

1098 Copenhagen, K

Denmark

Latest data adjustment

20 February 2023
