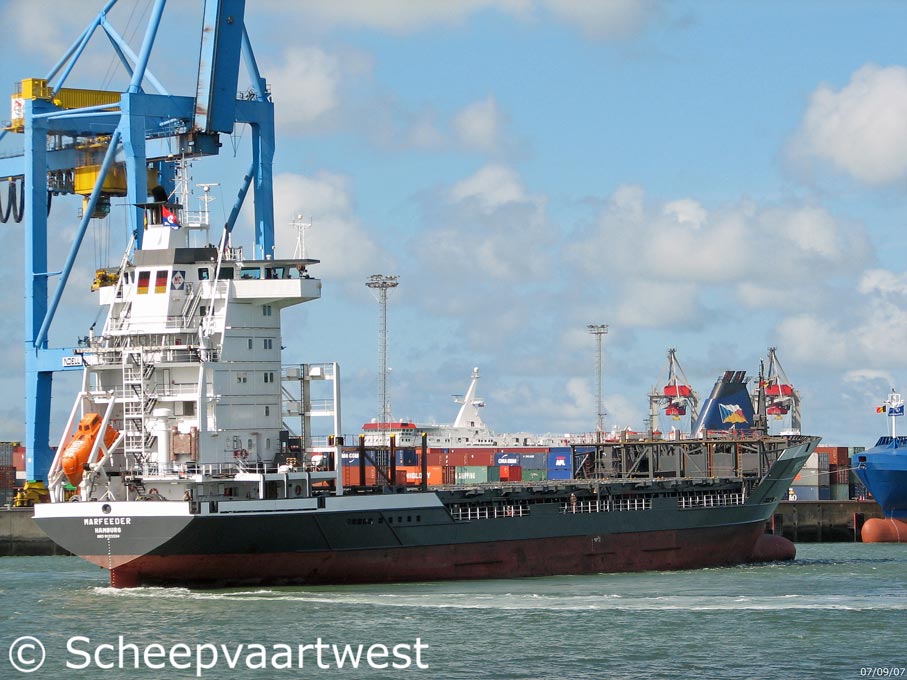

Marfeeder 01
Zeebrugge 07 September 2007

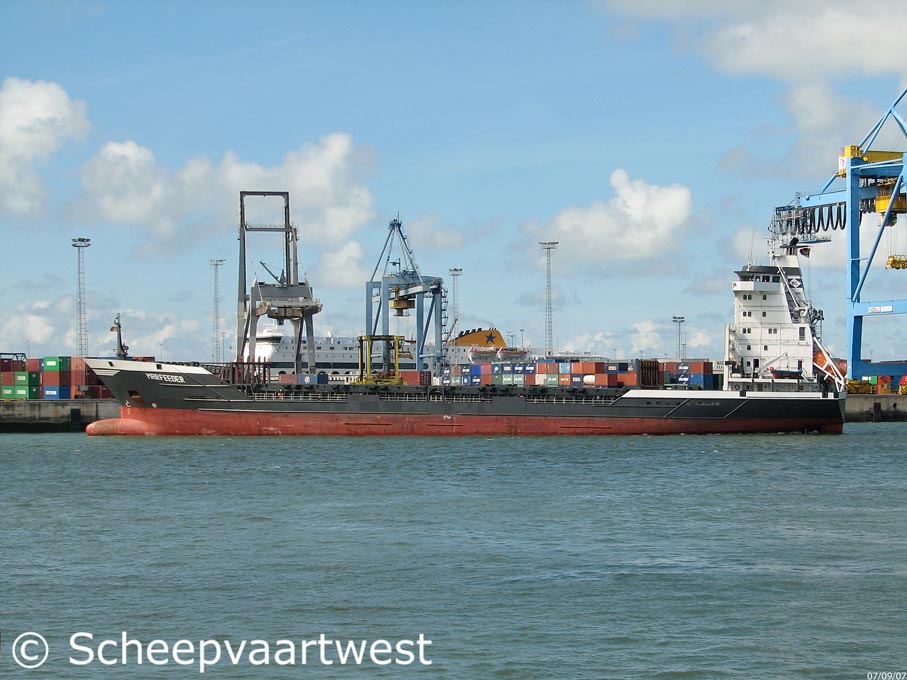

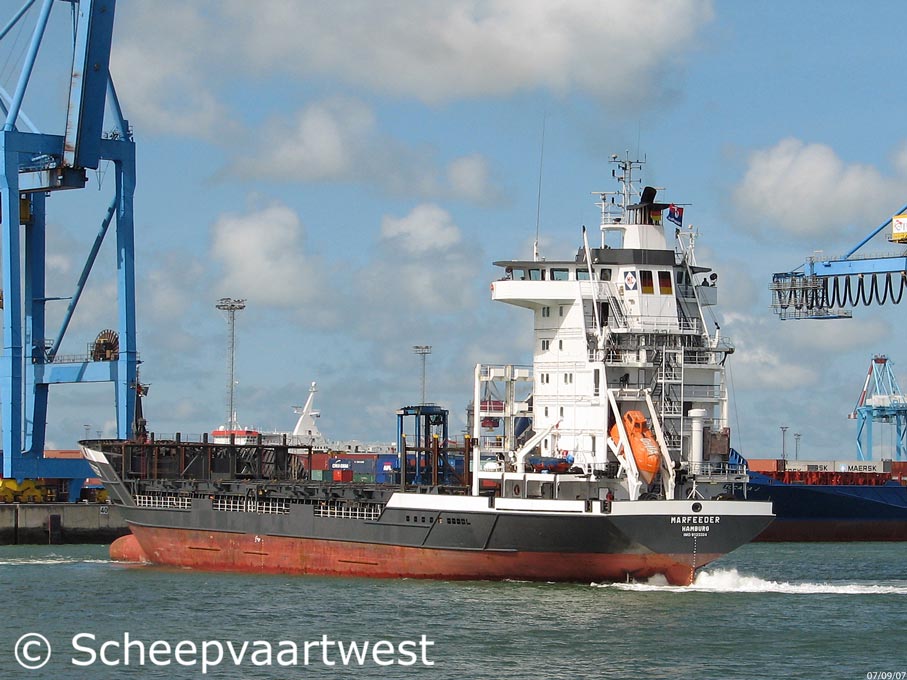

Marfeeder 03   Marfeeder 05
Zeebrugge 07/09/07 Zeebrugge 07/09/07



Name

MARFEEDER

Previous names

1996-1999 Portugal Bridge
1999-2004 Antje Jurgens
Samskip Iberia

Type

Cellular containership - Container feeder

IMO-number

9123324

Call sign

DHMA

Flag

Germany

Port of registry

Hamburg

GT

4.986 t

DWT

6.506 t

NT

2.104 t

Number of 20ft containers

532

Container capacity at 14 t

330

Reefer plugs

92

Length

116,26 m overall
107,80 m between perpendiculars

107,96 m registered

Breadth

19,50 m overall
19,20 m moulded

Draught

Summer: 7,050 m

Forecastle

11,23 m

Poop

14,00 m

Depth

9,20 m moulded

Speed

17,0 knots

Built

1996

Keel laid

12.07.1994

Launch date

03.03.1996

Date of completion

04.1996

Builder

Peterswerft Wewelsfleth GmbH & Co. KG
Am Hafen 6
25599 Wewelsfleth
Federal Republic of Germany

Yard number

654

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom

Watertight bulkheads

5

Continuous decks

2

Main engine

1x Wärtsilä 9L38 - 4 stroke single acting 9 cylinder3 80 x 475 mm diesel engine - 4.200 kW

Year of manufacture: 1990

Manufacturer: Stork-Wärtsilä Diesel B.V.
Assendorperlure 5
8017 AA Zwolle
The Netherlands

Propeller

1x Controllable pitch propeller - aft

Electric installations

1x 380/220 V - 540 kVA

1x 380 V - 760 kVA

1x 380 V - 198 kVA

Shaft generator

760 kVA

Generators

2x Main diesel generatorsets each 270 kVA

Emergency generator

1x Diesel generatorset 198 kVA

Bow thruster

1x Transverse thruster JASTRAM - 410 kW, forward

Compressed air receivers

2x Receivers each 1000 litres - 30,0 bar

1x Receiver 30 litres - 30,0 bar

Cargo capacity

Grain: 7.018 m³

Bales: 6.817 m³

Number of holds

2

Number of hatches

2

Anchor equipment

3x Anchors weight each 3.780 kg

Chain length: 522,50 m

Cargo gear

None

Manager

MarConsult Schiffahrt (GmbH & Co.) KG
Gasstr. 4b, Halle K5
22761 Hamburg
Federal Republic of Germany

Operator

Evergreen

Owner

MarFeeder Schiffahrtsges. mbH & Co. KG
Gasstr. 4b, Halle K5
22761 Hamburg
Federal Republic of Germany
