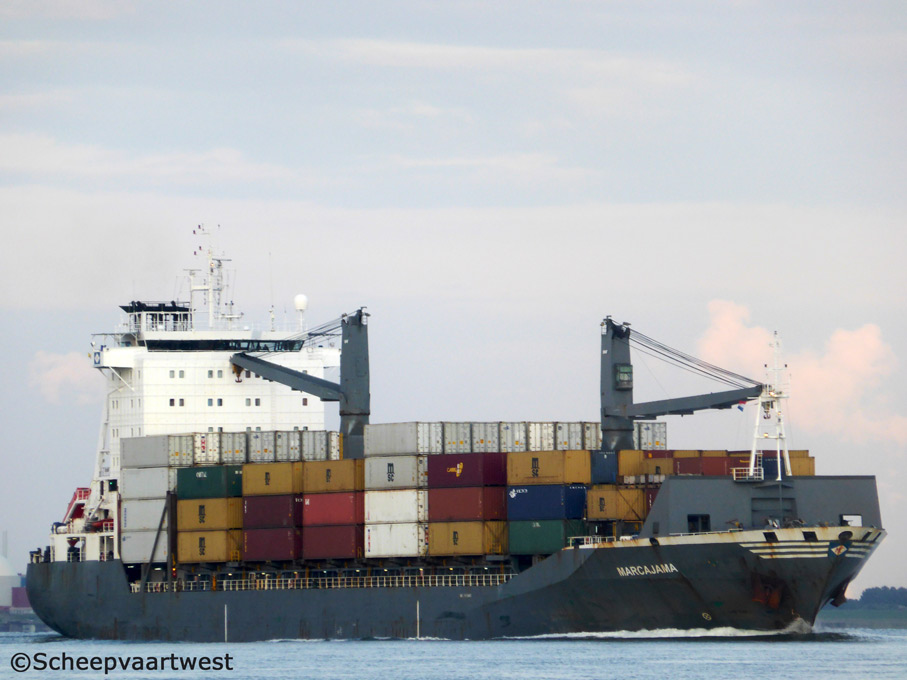

Marcajama 01

Westerschelde 04 August 2014

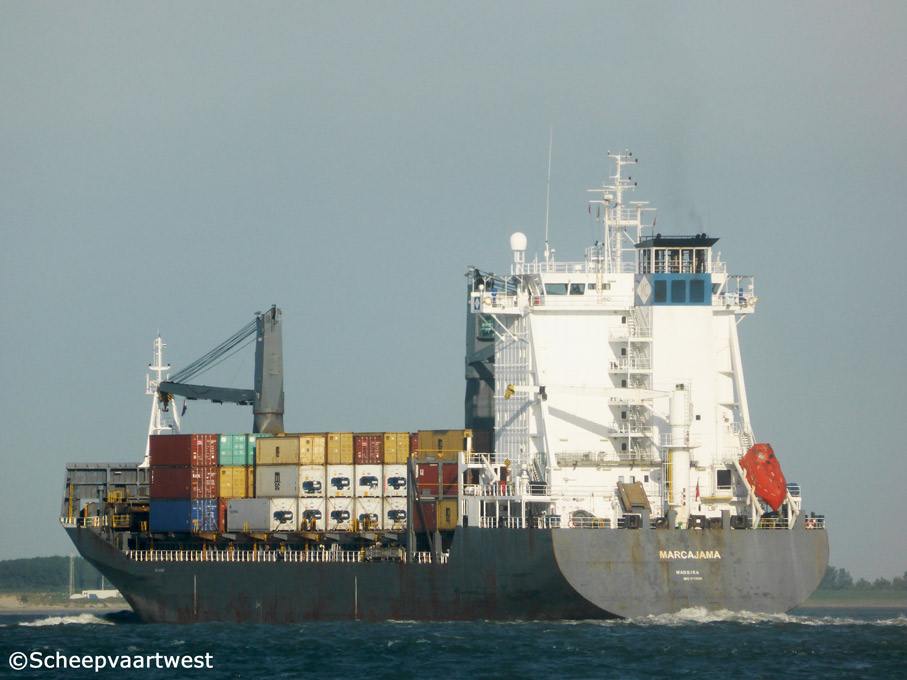

Marcajama 02
Westerschelde 14/07/14



Name

MARCAJAMA

Previous names

1996 - 10.1998 Steindeich

1998 - 03.2001 P&O Nedlloyd Mombasa

2001 - 04.2006 Guatemala

2006 - 02.2007 Steindeich

2007 - 10.2008 Delmas Leixoes

Type

Cellular containership

IMO-number

9113458

Call sign

CQFD

Flag

Portugal

Port of registry

Madeira

GT

14.473 t

DWT

Summer: 18.323 t

NT

6.261 t

Number of 20ft containers

1.203

Container capacity 14t

849

Reefer plug

150

Length

159,24 m overall

146,28 m registered

Breadth

24,00 m registered

Draught

10,20 m

Forecastle

22,99 m

Poop

18,27 m

Freeboard

3.718 mm

Depth

13,90 m moulded

Speed

19,0 knots

Built

1996

Keel laid

05.03.1996

Launch date

20.07.1996

Date of completion

09.1996

Builder

Stocznia Gdynia S.A.
ul. Czechoslowacka 3
81-969 Gdynia
Republic of Poland

Yard number

8130/2

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom

Watertight bulkheads

6

Continuous decks

2

Main engine

1x MAN-B&W 8S50MC - 2 stroke 8 cylinder 500 x 1.910 mm diesel engine - 11.440 kW at 127,0 rpm

Year of manufacture: 1996

Manufacturer: H. Cegielski-Poznan S.A.
ul. 28 Czerwca 1956 223/229
60-965 Poznan
Republic of Poland

Propellers

1x Solid propeller (Keyless) - aft at 127,0 rpm

Boilers

1xSteam boiler, exhaust gas heated - 9,0 bar

Heating surface: 435,0 m²

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 61,0 m²

Year of manufacture: 1995

Manufacturer: Gdanska Stocznia Remontowa
ul. Na Ostrowiu 1
80-958 Gdansk
Republic of Poland

Electric installations

3x Plants each 440/ 220 V - 1.100 kVA

1x Plant 440 V - 200 kVA

Generators

3x Main diesel generatorsets each 1.100 kVA

Emergency generator

1x Diesel generatorset 200 kVA

Compressed air receivers

2x Receivers each 6.000 litres - 33,0 bar

1x Receiver 400 litres - 33,0 bar

1x Receiver 50 litres - 8,0 bar

Bow thruster

1x Transverse thruster 590 kW, forward

Number of holds

4

Cargo capacity

Grain: 23.216 m³

Number of hatches

4

Anchor equipment

3x Anchors weight each 6.900 kg

Chain length: 605,00 m

Cargo gear

2x Cranes - SWL 43,0 t each

Manager

MarConsult Schiffahrt (GmbH & Co.) KG
Gasstr. 4b, Halle K5
22761 Hamburg
Federal Republic of Germany

Registered owner

MarCajama Schiffahrtsges. mbH & Co. KG
Gasstr. 4b, Halle K5
22761 Hamburg
Federal Republic of Germany

Renamed

09.2014 Marca

Scrapped

12.2014 Alang, India

Latest data adjustment

12 April 2015
