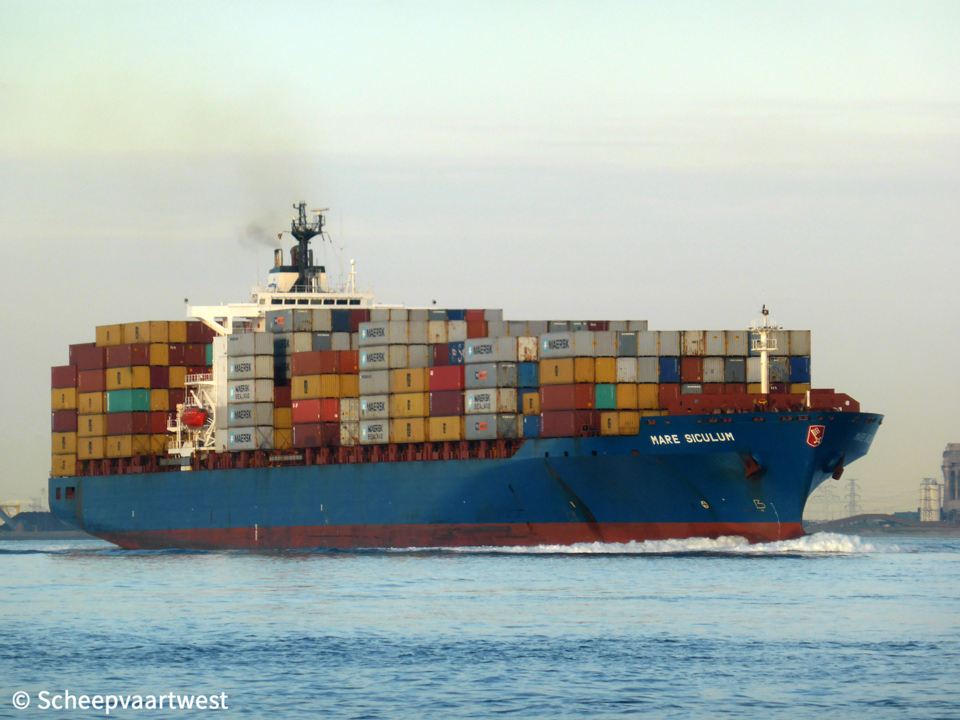

Mare Siculum 01

Westerschelde 25 June 2015



Name

MARE SICULUM

Previous names

1998 - 12/1998 Mare Siculum

12/1998 - 06/2004 Weser Bridge

06/2004 - 11/2005 P&O Nedlloyd Tiger

11/2005 - 03/2006 Maersk Tiger

03/2006 - 11/2007 Mumbai Exoress

11/2007 - 05/2009 Maersk Dulles

05/2009 - 12/2013 Alvsborg Bridge

Type

Cellular containership - Panamax

IMO-number

9169134

Call sign

V2AH1

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

40.306 t

DWT

Summer: 52.357 t

NT

24.819 t

Number of 20ft containers

In hold: 1.652

On deck: 2.386

Total: 4.038

Container capacity 14t

2.863

Reefer capacity

405

Length

260,66 m overall

248,05 m registered

Breadth

32,25 m registered

Draught

Max: 12,50 m

Depth

19,30 m moulded

Speed

Max: 22,5 knots

Built

1998

Keel laid

20/05/1998

Launch date

12/09/1998

Date of completion

04/12/1998

Builder

Hyundai Heavy Industries Co., Ltd.

Ulsan

South Korea

Yard number

1102

Hull material

Shipbuilding steel (higher tensile)

Hull type

Double bottom type double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

8

Continuous decks

2

Main engine

1x Sulzer 9RTA84C - 2 stroke 9 cylinder combustion 840 x 2.400 mm engine 36.450 kW at 102,0 rpm propulsion acts directly on the propellershaft

Starter type: Compressed air direct

Build: 1998

Manufacturer: Hyundai Engine & Machinery Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired / exhaust gas heated - 7,8 bar

Heating surface: 35,0 m²

Heating surface: 277,0 m²

Build: 1998

Manufacturer: KangRim Industries Co., Ltd. (1st Factory)

Electric installations

1x Plant 440/220 V - 1.957 kVA

1x Plant 440/220 V - 1.957 kVA

1x Plant 440/220 V - 1.957 kVA

1x Plant 440 V - 188 kVA

Generators

3x Main diesel generatorset each 1.566 kW / 1.957 kVA

Emergency generator

1x Diesel generatorset 188 kVA

Compressed air receivers

2x Receivers each 8.900 litres - 30,0 bar

Bow thruster

1x Transverse thruster Brunvoll 1.500 kW, forward

Number of holds

7

Tank capacities

Water ballast: 11.331 m³

Fuel: 5.907 m³

Anchor equipment

3x Anchors weight each 11.100 kg

Chain length: 687,50 m

Manager

Hansa Mare Reederei GmbH & Co., KG

Am Wall 58-60

28195 Bremen

Germany

Owner

MS "Mare Siculum" Schiffahrtsges. mbH & Co. KG

Am Wall 58-60

28195 Bremen

Germany

Renamed

01/2017 - 02/2017 Mare Siculum I

Scrapped

03/2017 as Anita

Alang Shipbreaking Yards - India

Latest data adjustment

24 July 2019
