Westerschelde 29 December 2018 |
 |
 |
 |
 |
|||

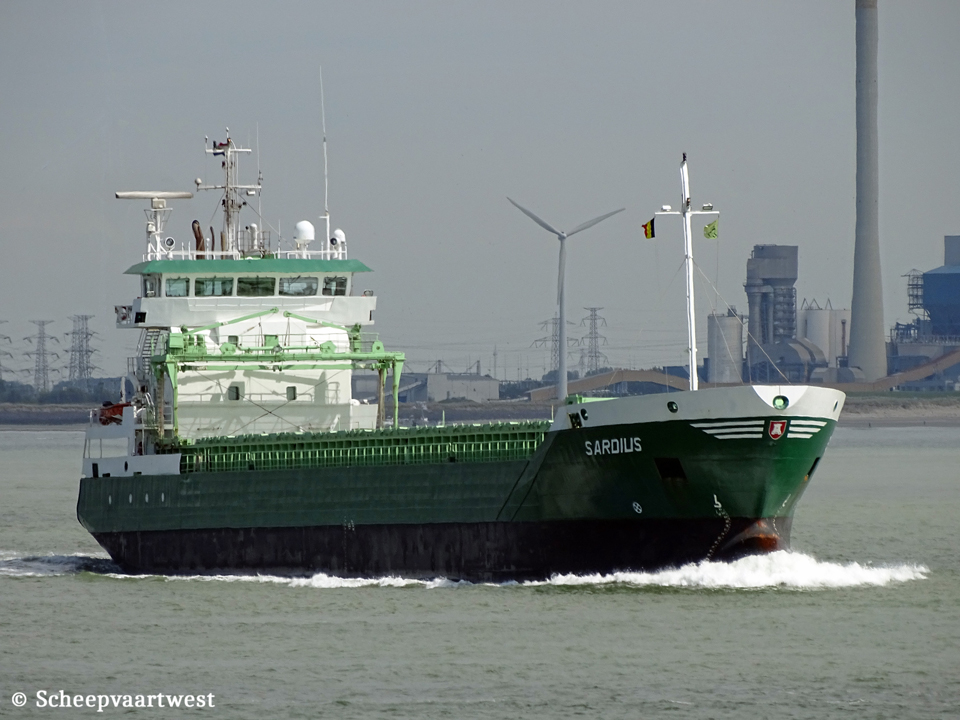

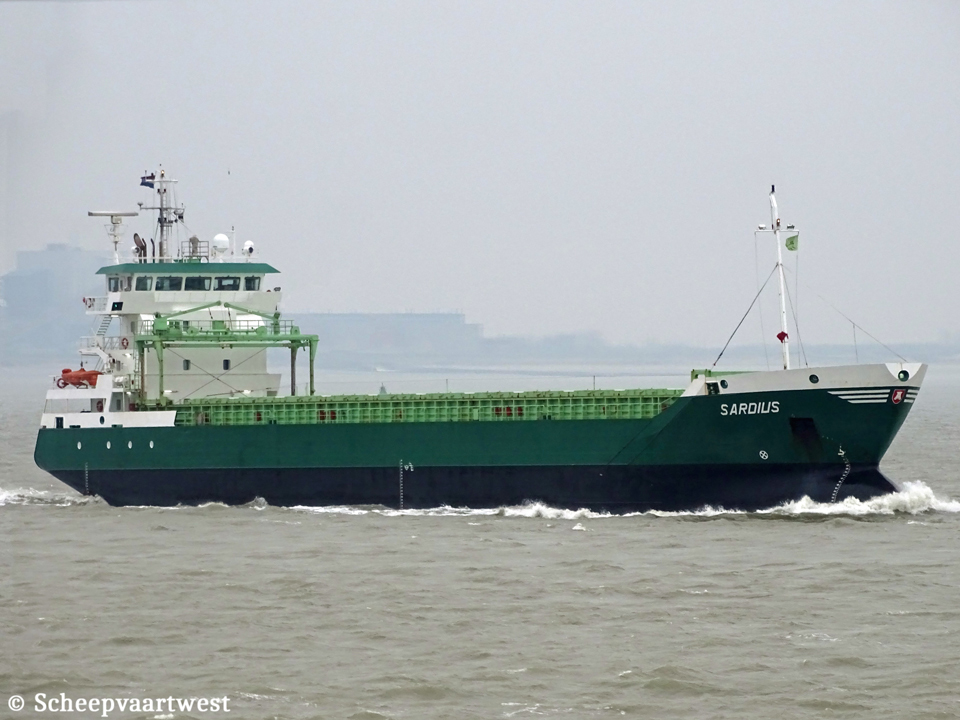

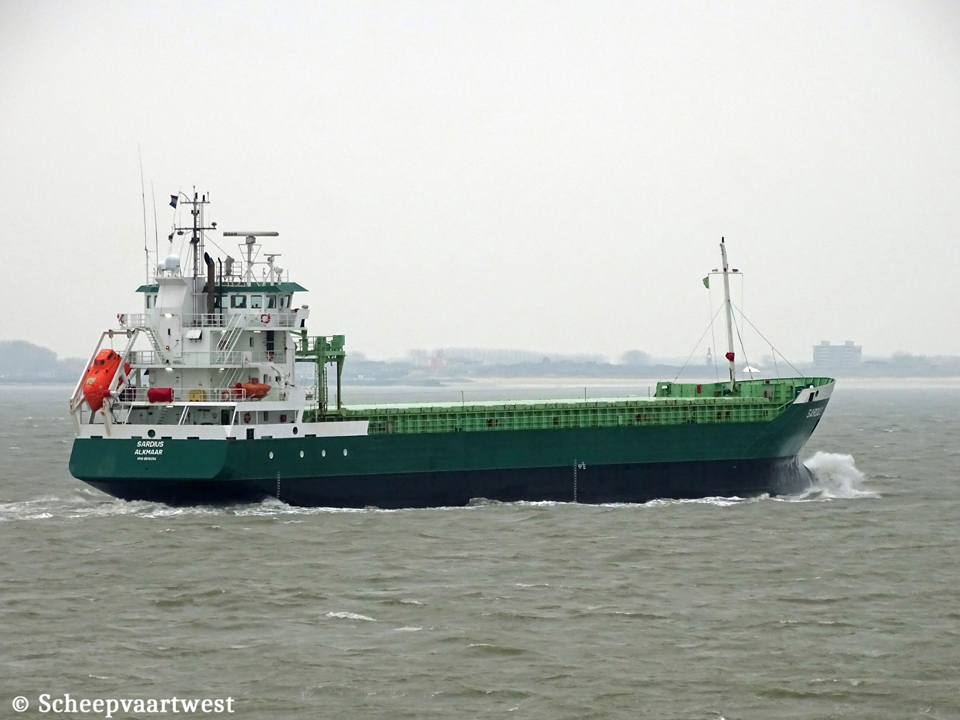

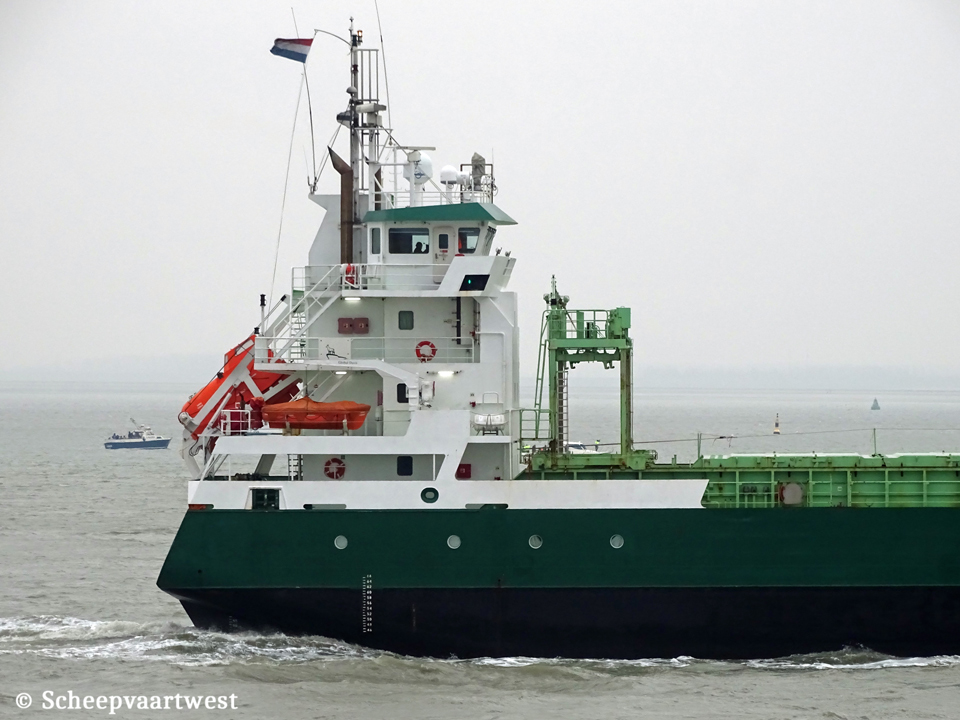

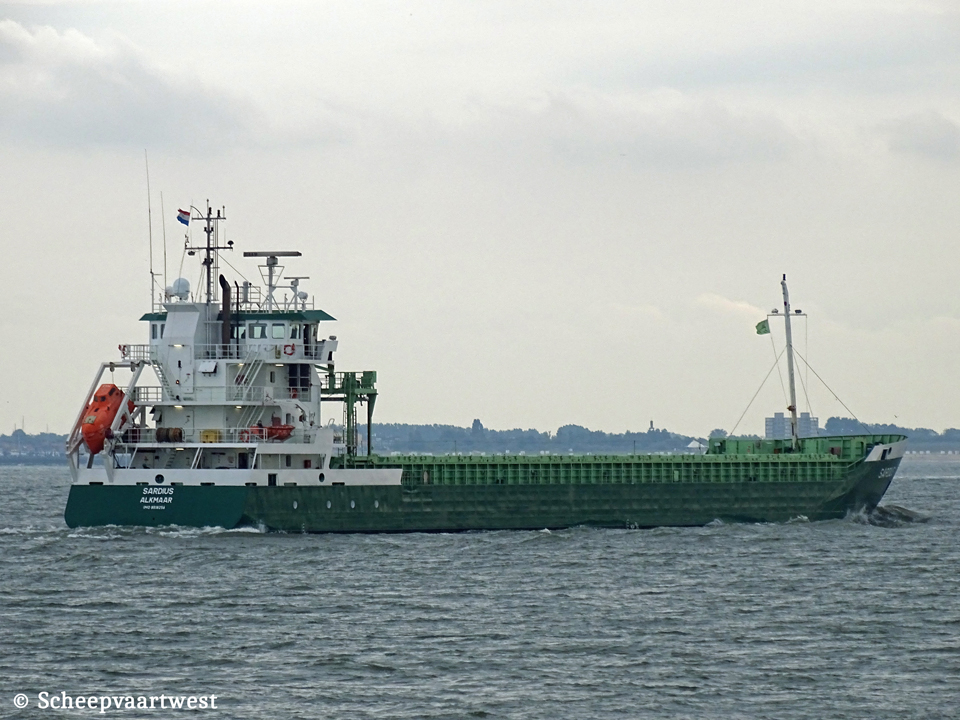

| Westerschelde 29/12/18 | Westerschelde 29/12/18 | Westerschelde 30/07/16 | Vlissigen 07/09/15 | |||
|
Name |
SARDIUS |
|
Type |
General cargo ship - Heavycargo - Equipped for carriage of containers |
|
IMO-number |
9518256 |
|
Call sign |
PCLD |
|
Flag |
The Netherlands |
|
Port of registry |
Alkmaar |
|
GT |
3.739 t |
|
DWT |
Summer: 5.200 t |
|
DWCC |
Summer: 4.850 t |
|
NT |
1.491 t |
|
Number of 20ft containers |
192 |
|
Length |
99,99 m overall 96,67 m between perpendiculars |
|
Breadth |
13,35 m overall |
|
Draught |
Summer: 6,16 m |
|
Air draft |
24,00 m ballast |
|
Freeboard |
2.960 mm |
|
Depth |
9,10 m moulded |
|
Speed |
12,0 knots |
|
Built |
2011 |
|
Launch date |
05/01/2011 |
|
Delivery |
01/07/2011 |
|
Builder casco |
Brodogradiliste Leda D.O.O. Korcula Croatia |
|
Builder completion |
Scheepswerf Peters BV Kampen The Netherlands |
|
Yard number |
1103 |
|
Hull material |
Steel |
|
Hull type |
Double skinned |
|
Continuous decks |
1 |
|
Main engine |
1x Wärtsilä 9L20 - 4 stroke single acting 9 cylinder 200 x 280 mm combustion engine 1.800 kW / 2.446 bhp at 1.000 rpm Build: 12/2008 Builder: Wärtsilä NSD Nederland B.V., Zwolle - The Netherlands |
|
Propellers |
1x Screw propeller controllable pitch - aft at 172 rpm 4 bladed - diameter 2.950 mm with nozzle |
|
Generators |
2x Main diesel generatorsets each 212 kVA - 170 kW - 247 hp |
|
Emergency generator |
1x Diesel generatorset 77 kVA - 62 kW - 101 hp |
|
Bow thruster |
1x 280 kW |
|
Number of holds |
1 61,80 x 11,20 x 9,60 m |
|
Total capacity of holds |
Grain/Bale: 6.645 m³ / 234.650 ft³ |
|
Hold ventilation |
6x Air-changes per hour basis empty hold. Hold is fitted with dehumidifier system |
|
Number of hatches |
1 61,80 x 11,20 m |
|
Hatches type |
Coops&Nieborg hatch cover pontoons |
|
Tank capacities |
MGO: 366 m³ Water ballast: 1.909 m³ Fresh water: 42 m³ |
|
Manager |
Wagenborg Shipping B.V. Marktstraat 10 9934 CK Delfzijl The Netherlands |
|
Registered owner |
Sardius B.V. Alkmaar The Netherlands |
|
Renamed |
06/2023 Gooteborg The Netherlands, Delfzijl - Call sign: PCLD Manager: Wagenborg Shipping B.V., Delfzijl - The Netherlands Owner: Wagenborg Shipowners 20 B.V., Delfzijl - The Netherlands |
|
Latest data adjustment |
19 June 2024 |
