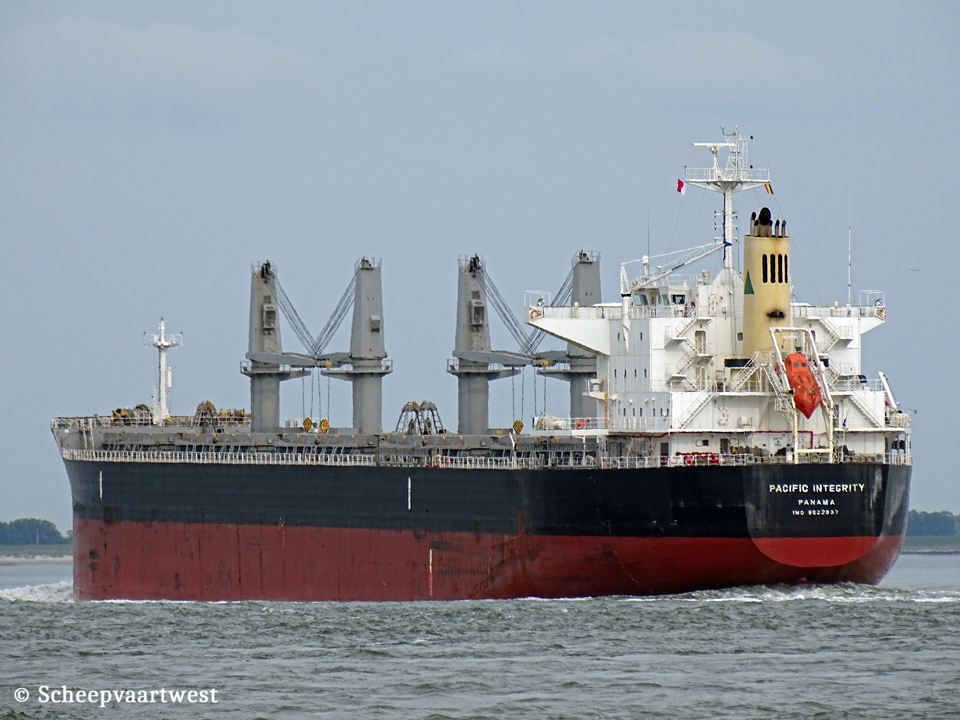

Pacific Integrity - IMO 9622837

Name

PACIFIC INTEGRITY

Type

Bulk carrier - Strengthened for heavy cargo loading

IMO-number

9622837

Call sign

3FIC9

Flag

Republic of Panama

Port of registry

Panama City

GRT

31.767 t

DWT

56.100 t

NRT

18.651 t

Keel to mast end

50,50 m

Length

189,99 m overall

Breadth

32,25 m moulded

Draught

Summer: 12,72 m

Moulded L x B x D

182,00 x 32,25 x 18,10 m

Registered L x B x D

182,99 x 32,25 x 18,10 m

Freeboard

Summer: 5.433 mm

Depth

18,10 m moulded

Speed

Max: 16,5 knots

Service: 14,5 knots

Build

2013

Keel laid

22/12/2011

Launch date

09/01/2013

Date of completion

04/04/2013

Builder

Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works

Japan

Yard number

1842

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W/Mitsui 6S50MC-C - 2 stroke single acting 6 cylinder 500 x 2.000 mm combustion engine 9.070 kW/ 12.332 hp at 125,0 rpm

Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 490 mm

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary vertical boiler - 0,60 MPa

Evaporation: 3,27 t/h

Manufacturer: Osaka Boiler Mfg. Co., Ltd.

Generators

4x Generatorsets total 2.089 kVA

Number of holds

5

Cargo hold capacity

Bale: 68.733 m³

Grain: 71.345 m³

Number of hatches

5

Tank capacities

Fuel oil: 2.313 m³

Fresh water: 341 m³

Cargo gear

4x Deck cranes - SWL 30,0 t each

4x Grabs each 12,0 t

Crew

24

Commercial manager

HMM Co Ltd

194, Yulgok-ro, Jongno-gu

Seoul, 03127

South Korea

ISM manager

Toei Japan Ltd.

Sannomiya Century Building

83, Kyo-machi, Chuo-ku, Kobe-shi

Hyogo-ken, 650-0034

Japan

Registered owner

Four Shrine Corp.

Care of HMM Co., Ltd.

194, Yulgok-ro, Jongno-gu

Seoul, 03127

South Korea

Renamed

05/2024 Krait

Marshall islands, Majuro - Call sign: V7A6616

Registered owner: Maritime Krait Llc.

ISM manager: Anglo-Eastern (Antwerp) NV

Latest data adjustment

09 October 2024
