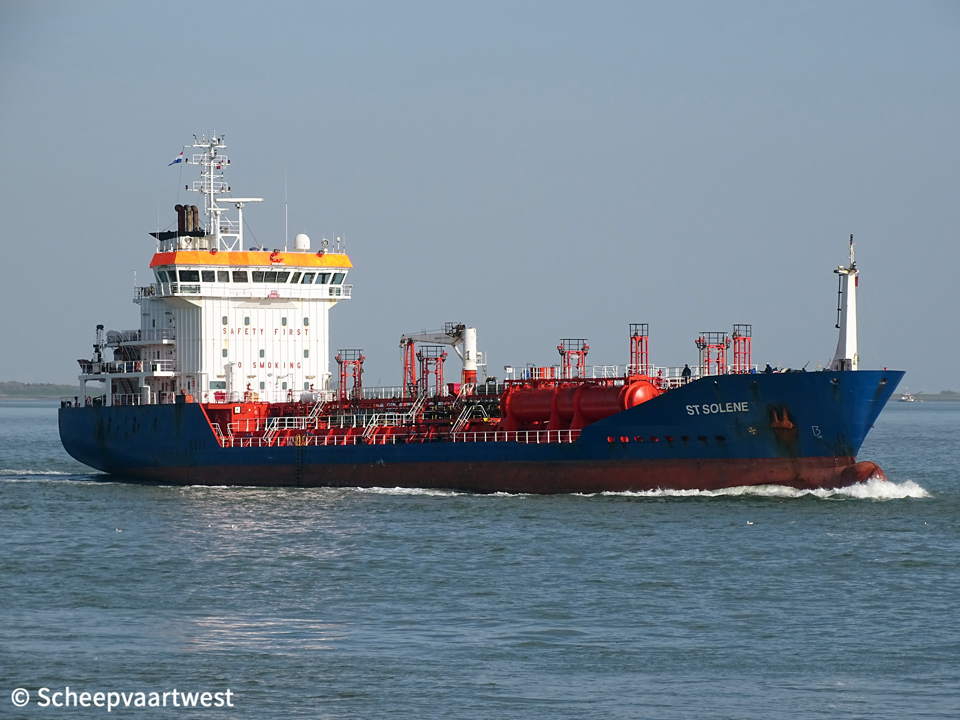

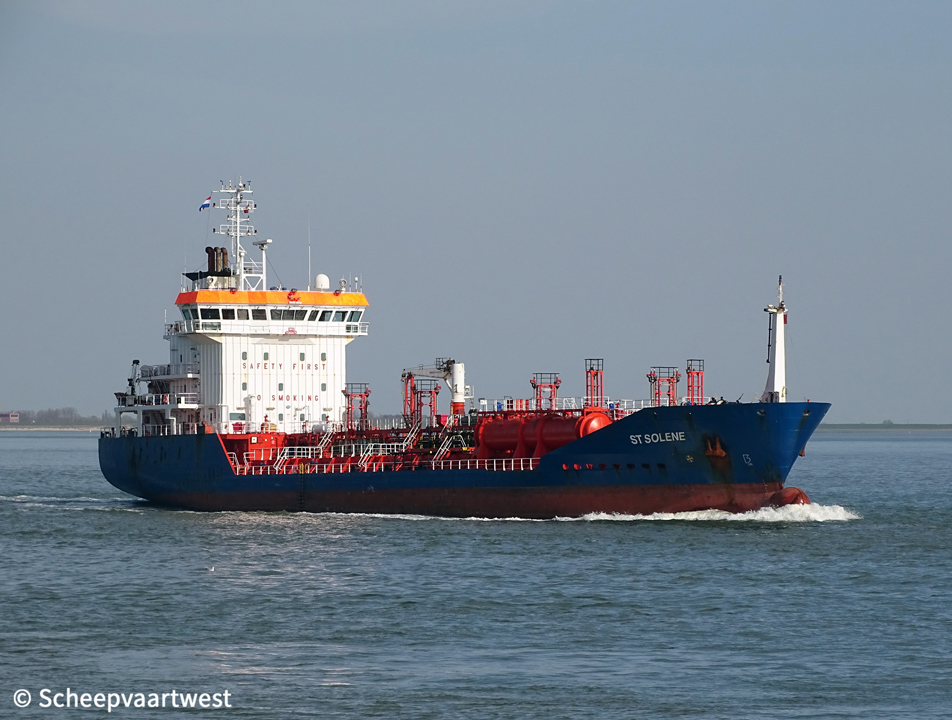

ST Solene - IMO 9282675

Westerschelde 07 April 2020

Name

ST SOLENE

Previous names

2003 - 03/2009 FS Solene

Type

Chemical and oil product tanker

IMO-number

9282675

Call sign

FVDG

Flag

France

Port of registry

Marseille

GT

3.997 t

DWT

Summer: 5.820,10 t

Winter: 5.624 t

NT

1.823 t

Light weight

2.263 t

Length

105,50 m overall

99,35 m between perpendiculars

Breadth

16,80 m

Draught

Summer: 6,29 m

Winter: 6,16 m

Keel to mast end

33,52 m

Freeboard

1.120 mm

Depth

7,40 m

Speed

13,4 knots

Built

2003

Date of completion

20/10/2003

Builder

Yardimci Shipyard

Tuzla-Istanbul

Turkey

Yard number

027

Hull material

Steel

Hull type

Double hull

Continuous decks

1

Main engine

1x MAN-B&W 8L27/38 - 4 stroke 8 cylinder 270 x 380 mm combustion engine 2.720 kW / 3.696 hp at 800 rpm

Built: 2003

Builder: MAN-B&W Diesel A/S Alpha Diesel, Frederikshavn - Denmark

Propellers

1x Screw propeller controllable pitch - aft at 166 rpm

Boilers

1x CHR Garioni 55,00 m² - 6,5 bar

2x CHO Garioni 47,30 m² - 6,5 bar

Shaft generator

800 kW

Generators

3x Main diesel generatorsets each 500 kVA - 400 kW - 602 hp at 1.500 rpm

Bow thruster

1x Electric variable pitch 300 kW, forward

2x 300 KW water jet, aft

Number of holds

10

Cargo tank capacity

1P + 1S = 659 m³

2P + 2S = 1.382 m³

3P + 3S = 1.467 m³

4P + 4S = 1.467 m³

5P + 5S = 1.297 m³

Cargo tanks at 98%: 6.272 m³

Number of slop tanks

2

Slop tank capacity 98%

2x 78 m³

Grand total 98%

6.428 m³

Pumps

10x Marflex deepwell electric cargo pumps each 200 m³/h

2x Slop tank pumps each 70 m³/h

Tank capacities

Fuel oil: 271 t

Gas oil: 96 t

Crew

12

Operator

ST Management SAAM

7 Rue du Golf

33700 Merignac

France

Registered owner

Sea-Tankers Shipping SAS

7 Rue du Golf

33700 Merignac

France

Previous names & owners

2003 - 03/2009 FS Solene - Fouquet Sacop

Latest data adjustment

03 August 2020
