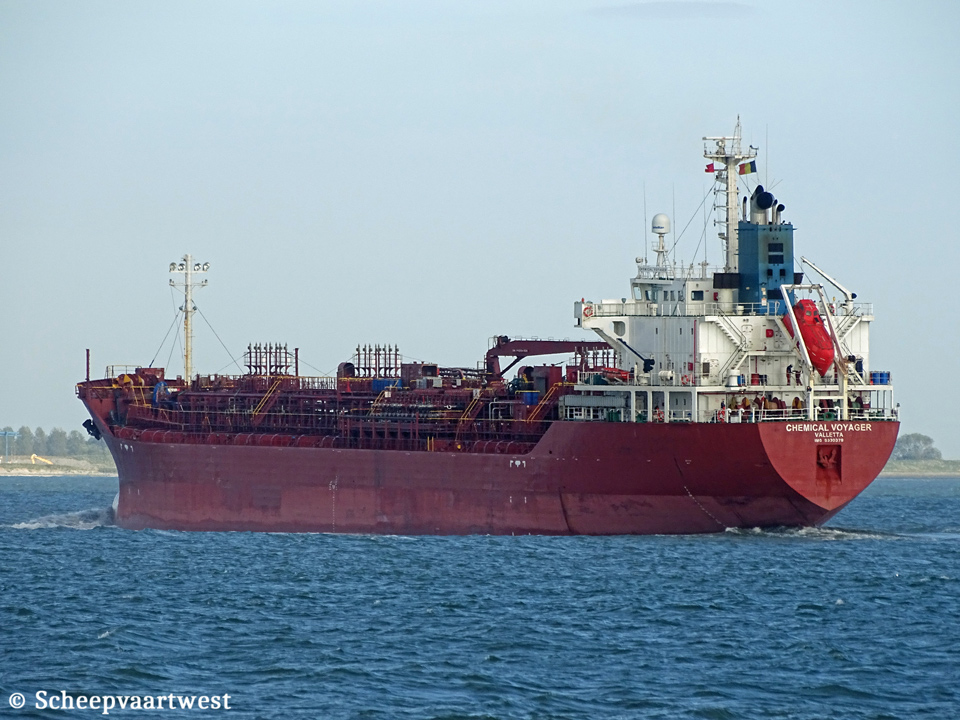

Westerschelde 11 September 2018 |
|
Name |
CHEMICAL VOYAGER |
|
Previous names |
2005 - 11/2007 Panam Caribe 11/2007 - 08/2011 Clipper Caribe 08/2011 - 2017 Davino D |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9330379 |
|
Call sign |
9HA4488 |
|
Flag |
Malta |
|
Port of registry |
Valletta |
|
Previous flags |
2005 - 2017 Bahamas, Nassau - Call sign: C6US5 |
|
GT |
8.254 t registered |
|
DWT |
Summer: 14.246 t |
|
NT |
4.725 t registered |
|
Length |
134,16 m overall |
|
Breadth |
20,50 m moulded |
|
Draught |
Summer: 8,84 m |
|
Moulded L x B x D |
125,00 x 20,50 x 11,60 m |
|
Registered L x B x D |
125,00 x 20,50 x 11,60 m |
|
Freeboard |
Summer: 2.783 mm |
|
Depth |
11,60 m moulded |
|
Speed |
Max: 14,7 knots |
|
Built |
2005 |
|
Keel laid |
04/12/2004 |
|
Launch date |
24/05/2005 |
|
Date of completion |
12/08/2005 |
|
Builder |
Asakawa Ship Building Co. Imabario Japan |
|
Yard number |
550 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x MAN-B&W 6S35MC - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW at 173,0 rpm Manufacturer: The Hanshin Diesel Works, Ltd. |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter: 350 mm |
|
Propellers |
1 |
|
Boilers |
1x Auxiliary Vertical Boiler - 0,98 Mpa Evaporation: 15,64 T/H Manufacturer: Miura Protec Co., Ltd. |
|
Generators |
3x main diesel generatorsets each 450 kW 60 hZ |
|
Bow thruster |
699 kW |
|
Cargo tank capacity |
Liquid: 16.439,85 m³ |
|
Pumps |
12x Cargo pumps each 300 m³/h 10x Cargo pumps each 200 m³/h |
|
Tank capacities |
Fuel oil: 845,54 m³ Fresh water: 250,43 m³ |
|
Crew |
19 |
|
Manager |
Fleet Management Limited Hong Kong - China |
|
Operator |
Maritime Performances BV Trondheim 20 2993 LE Barendrecht The Netherlands |
|
Registered owner |
Chemical Voyager Shipping Ltd. |
|
Latest data adjustment |
24 December 2020 |
