Malaga, Spain 08 March 2021 |
|
Name |

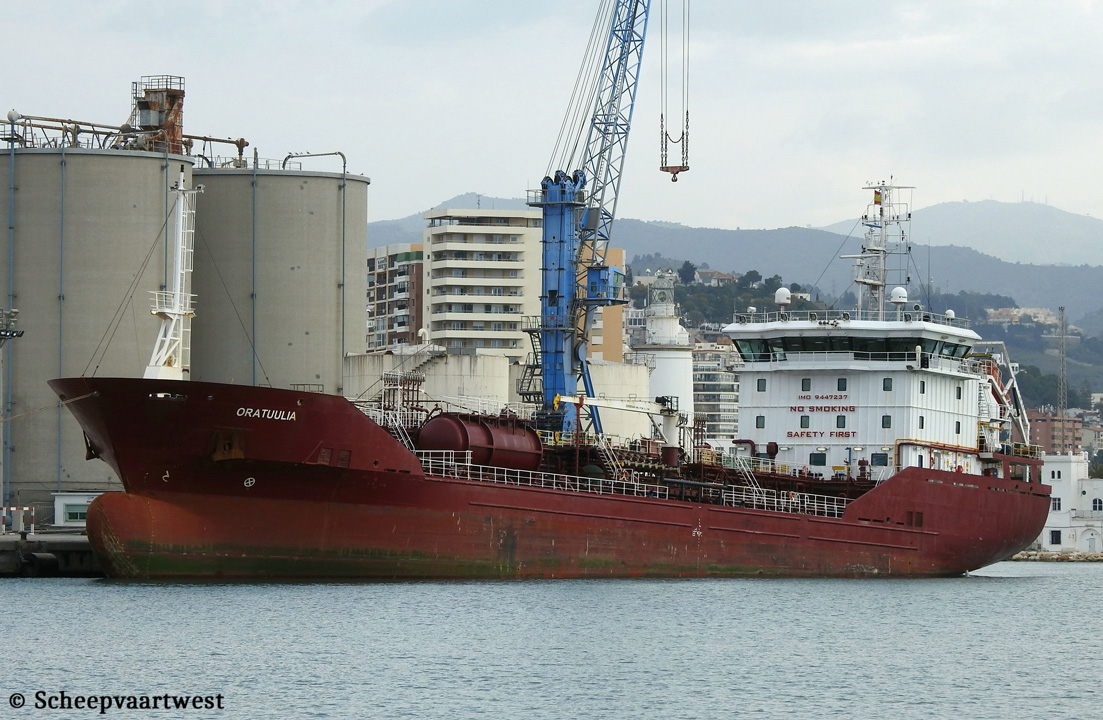

ORATUULIA |
|
Type |
Oil tanker / Chemical tanker |
|
IMO-number |
9447237 |
|
Call sign |
ZDRA7 |
|
Flag |
Gibraltar |
|
Port of registry |
Gibraltar |
|
Previous flags |
2008 - 2010 Italy - Call sign: IBGX 2010 - 2018 Malta, Valletta - Call sign: 9HUX9 |
|
GT |
3.999 t |
|
DWT |
Summer: 6.089,55 t Winter: 5.889,79 t |
|
NT |
1.887 t |
|
Displacement |
Summer: 8.439,47 t Winter: 8.239,71 t |
|
Length |
107,34 m overall 101,92 m between perpendiculars |
|
Breadth |
15,80 m |
|
Draught |
Summer: 6,58 m Winter: 6,44 m |
|
Keel to masthead |
33,85 m 27,27 m in collapsed condition |
|
Air draft |
Summer deadweight: 27,27 m Normal ballast: 29,72 m Lightship: 31,80 m |
|
Freeboard |
Summer: 1.681 mm Winter: 1.818 mm |
|
Depth |
8,25 m |
|
Speed |
Ballast: 12,5 knots - Economic: 11,5 knots Laden: 12,0 knots - Economic: 11,0 knots Max: 14,0 knots |
|
Built |
2008 |
|
Date of completion |
14/11/2008 |
|
Builder |
Torgem Gemi İnşaat Sanayi Ve Ticaret AS (Torgem Shipbuilding Industry & Trade) Tuzla Turkey |
|
Yard number |
94 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hyundai/Himsen 9H25/33P - 4 stroke 9 cylinder 250 x 330 mm combustion engine 2.610 kW / 3.546 hp at 900 rpm Build: 26/02/2007 Builder: Hyundai Heavy Ind. Co., Ltd. - Engine & Mach. Div., Pusan - South Korea |
|
Propellers |
1x Screw propeller controllable pitch - aft at 165 rpm |
|
Boilers |
2x CHO S-MAN AB 35,40 m² - 7,0 bar 1x CHR S-MAN AB 52,00 m² - 7,0 bar |
|
Generators |
3x MAN D2876LE301 main diesel generatorset 403 kVA - 322 kW - 530 hp |
|
Emergency generator |
1x Diesel generatorset 162 kVA - 130 kW - 177 hp |
|
Bow thruster |
402,14 bhp |
|
Number of cargo tanks |
12 |
|
Cargo tank capacity 98% |
6.577,06 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
137,48 m³ |
|
Pumps |
2x Centrifugal ballast pumps each 250 m³/h 12x Centrifugal cargo pumps each 250 m³/h 3x Centrifugal cargo pumps each 70 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 31,50 m Bow to centre manifold: 53,60 m Stern to centre manifold: 53,74 m Distance between cargo manifold centres: 870 mm Distance ships rail to manifold: 3.400 mm Distance manifold to ships side: 3.450 mm Top of rail to centre of manifold: 1.320 mm Distance main deck to centre of manifold: 2.350 mm Spill tank grating to centre of manifold: 1.172 mm |
|
Tank capacities |
Fuel oil: 277,44 m³ Diesel oil: 79,53 m³ |
|
Lifting equipment |
1x Derricks - SWL 5,0 t 1x Crane - SWL 2,0 t |
|
Crew size |
19 |
|
Technical operator |
South End Tanker Management BV Aventurijn 218 3316 LB Dordrecht The Netherlands |
|
Commercial operator |
Simonsen Chartering Aps Christiansmindevej 76 DK-5700 Svendborg Denmark |
|
Registered owner |
Tuulia Shipping CV Aventurijn 218 3316 LB Dordrecht The Netherlands |
|
Disponent owner |
Simonsen Chartering Aps Christiansmindevej 74 DK-5700 Svendborg Denmark |
|
Latest data adjustment |
15 March 2021 |
