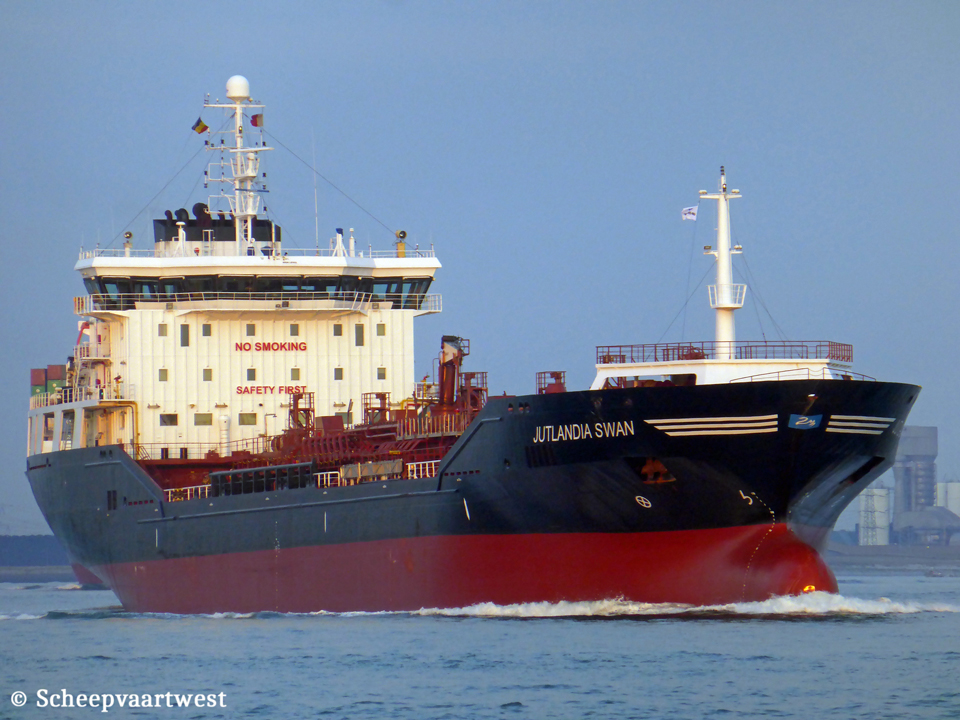

Westerschelde 07 July 2018 |
 |
 |
 |
 |
 |
 |
|||||

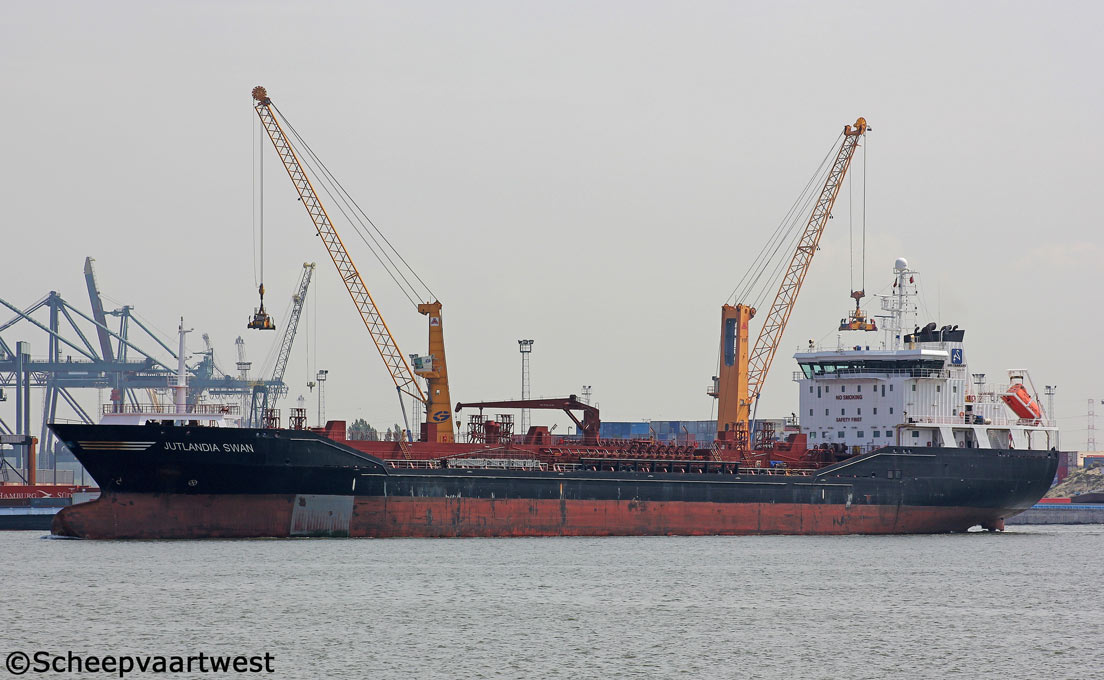

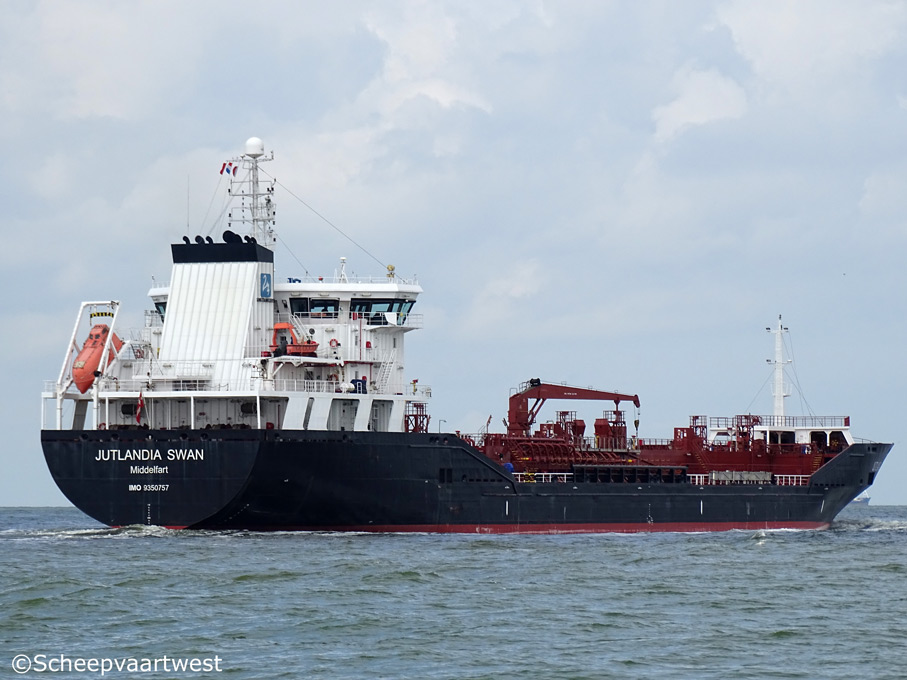

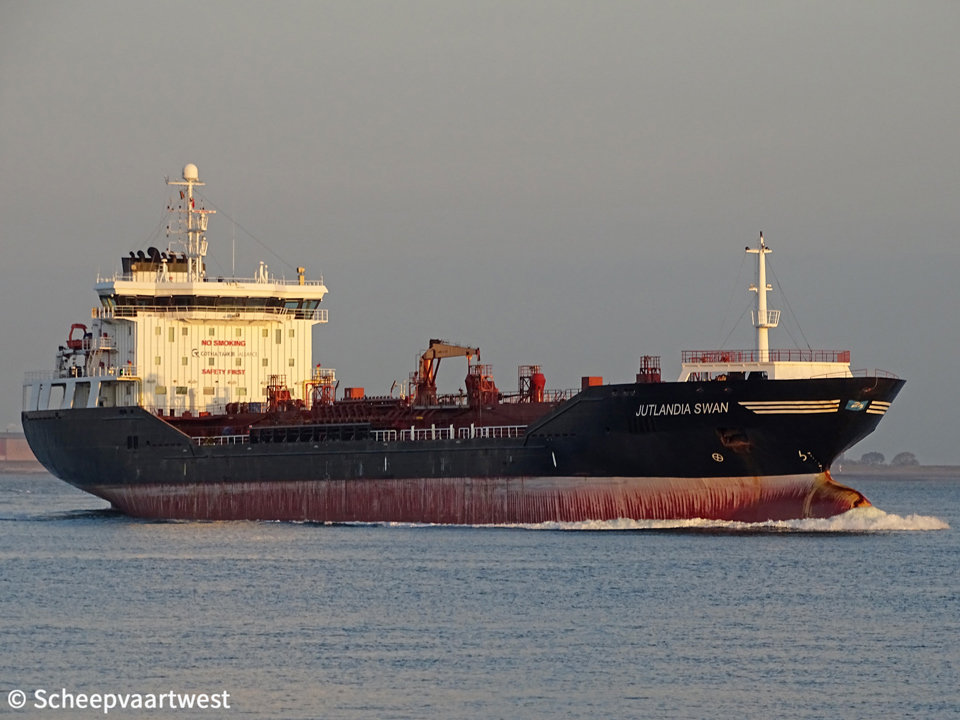

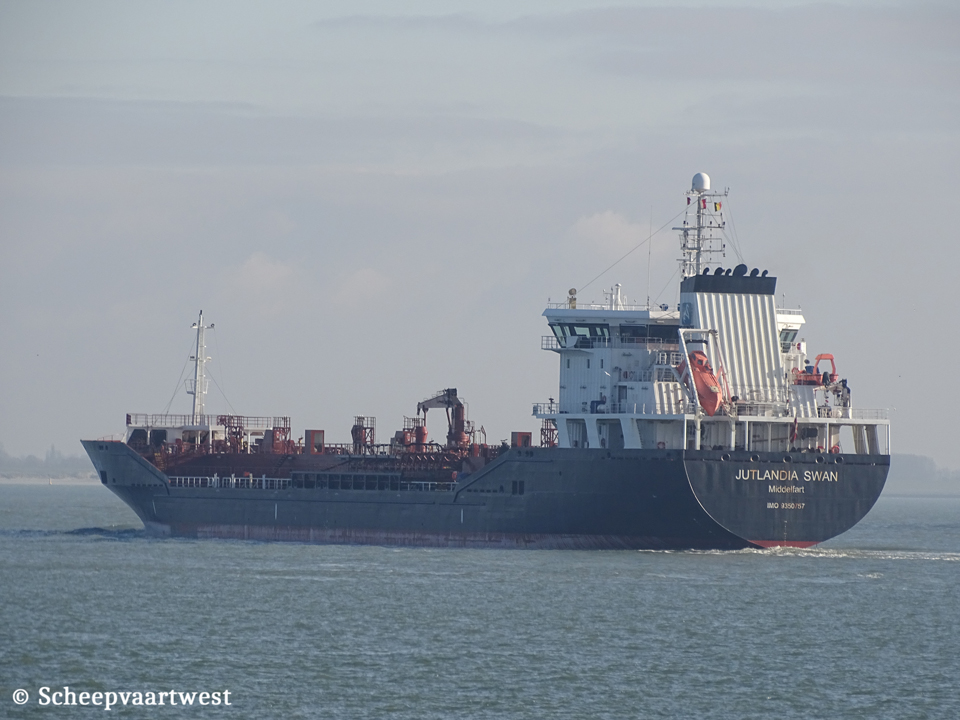

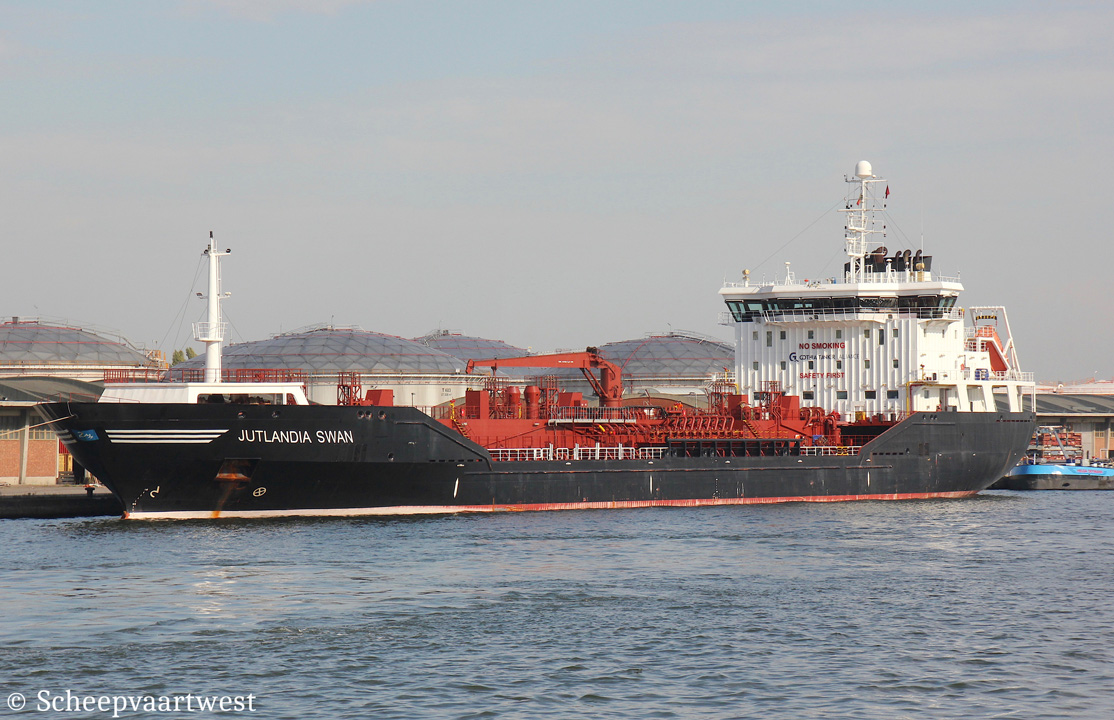

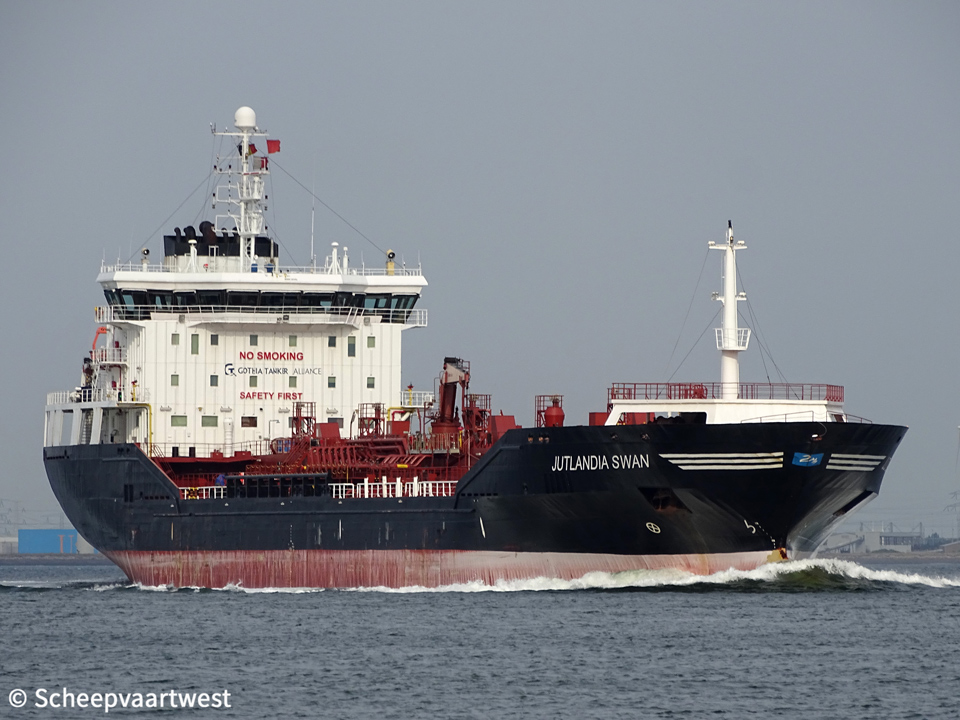

| Antwerpen 22/05/15 | Westerschelde 15/05/16 | Antwerpen 16/10/18 | Westerschelde 19/10/18 | Westerschelde 23/01/20 | Westerschelde 19/08/15 | |||||
|
Name |
JUTLANDIA SWAN |
|
Previous names |
2008 - 03/2009 Besiktas England |
|
Type |
Oil and chemical tanker - Handysize |
|
IMO-number |
9350757 |
|
Call sign |
OYIO2 |
|
Flag |
Denmark |
|
Port of registry |
Middelfart |
|
GT |
11.711 t |
|
DWT |
Summer: 17.998 t |
|
NT |
6.020 t |
|
Length |
147,50 m overall 140,60 m between perpendiculars |
|
Breadth |
22,40 m moulded |
|
Draught |
Summer: 9,49 m 6,25 m ballast |
|
Height from keel to mast |
39,20 m |
|
Air draft |
32,95 m in ballast 29,71 m loaded |
|
Depth |
12,60 m moulded |
|
Speed |
14,5 knots |
|
Built |
2008 |
|
Keel laid |
01/09/2006 |
|
Launch date |
25/05/2007 |
|
Date of completion |
15/01/2008 |
|
Builder |
Deniz Industry Co. Cicek Shipyard Tersaneler Cad. No. 20 Tuzla 34944 Istanbul Turkey |
|
Yard number |
40 |
|
Hull material |
Shipbuilding steel (higher tensile) |
|
Hull type |
Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
11 |
|
Continuous decks |
1 |
|
Main engine |
1x MaK 7M43C - 4 stroke 7 single acting cylinder 430 x 610 mm combustion engine Mcr 6.300 kW / 8.565 hp at 500 rpm Year of manufacture: 2006 Manufacturer: Caterpillar, Inc. 3701 South Street Lafayette United States of America |
|
Propellers |
1x Controllable pitch propeller - aft at 118,0 rpm |
|
Boilers |
1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 62,2 m² Year of manufacture: 2006 Manufacturer: TUBE-TEC Rohrverformungstechnik GmbH Hirtscheider Str. 13-15 57647 Nistertal Federal Republic of Germany 2x Thermal oil heater, oil fired - 13,0 bar Heating surface: 71,0 m² Year of manufacture: 2006 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark 1x Steam generator, thermal oil heated - 10,0 bar Heating surface: 18,0 m² Manufacturer: Apparatenfabriek Aalsmeer B.V. Aalsmeerderdijk 660 1435 BX Rijsenhout The Netherlands |
|
Electric installations |
3x Plants each 450 V - 1.000 kVA 1x Plant 450 V- 1.565 kVA 1x Plant 450 V - 250 kVA |
|
Shaft generator |
1x 1.565 kVA / 1.250 kW |
|
Generators |
3x Yanmar 6N21AL-SV - 4 stroke 6 cylinder 201 x 290 diesel engines each Mcr 880 kW connected with generators 1.000 kVA / 450 Volt 60 Hz |
|
Emergency generator |
1x Diesel generatorset 250 kVA - 218 kW - 281 hp |
|
Compressed air receivers |
2x Receivers each 1.000 litres - 30,0 bar 2x Receivers each 1.000 litres - 10,0 bar 1x Receiver 209 litres - 10,0 bar |
|
Bow thruster |
1x Tunnel thruster 740 kW / 1.006 bhp, forward |
|
Number of cargo tanks |
14 |
|
Number of segregations |
14 double valves |
|
Total tank capacity 98% |
20.218 m³ |
|
Number of slop tanks |
2 |
|
Slop tank capacity 98% |
399,73 m³ |
|
Coating |
Epoxy |
|
Pumps |
14x Centrifugal cargo pumps each 380 m³/h 2x Centrifugal cargo pumps each 100 m³/h 1x Centrifugal pump 70 m³/h 2x Ballast pump each 500 m³/h |
|
Manifolds |
Distance from bow to centre manifold: 76,10 m Distance from stern to centre manifold: 71,40 m Distance between manifolds: 1,50 m Distance from ship side to manifold: 4,70 m |
|
Tank capacities |
Ballast: 7.399,66 m³ Fuel: 866,16 m³ |
|
Anchor equipment |
3x Anchors weight each 5.250 kg Chain length: 577,50 m |
|
Lifting equipment |
1x Hose crane - SWL 10,0 t 1x MOB/stores crane - SWL 2,0 t |
|
Manager |
Uni-Tankers A/S |
|
Registered owner |
Uni-Tankers M/T Jutlandia Swan ApS Turbinevej 10 5500 Middelfart Kingdom of Denmark |
|
Renamed |
2022 Heinrich Gibraltar, Gibratar - Call sign: ZDSG4 Owner: Reederei TMS "HEINRICH" GmbH & Co. Manager: Carl F. Peters (GmbH & Co.) KG, Hamburg - Germany |
|
Latest data adjustment |
14 December 2022 |
