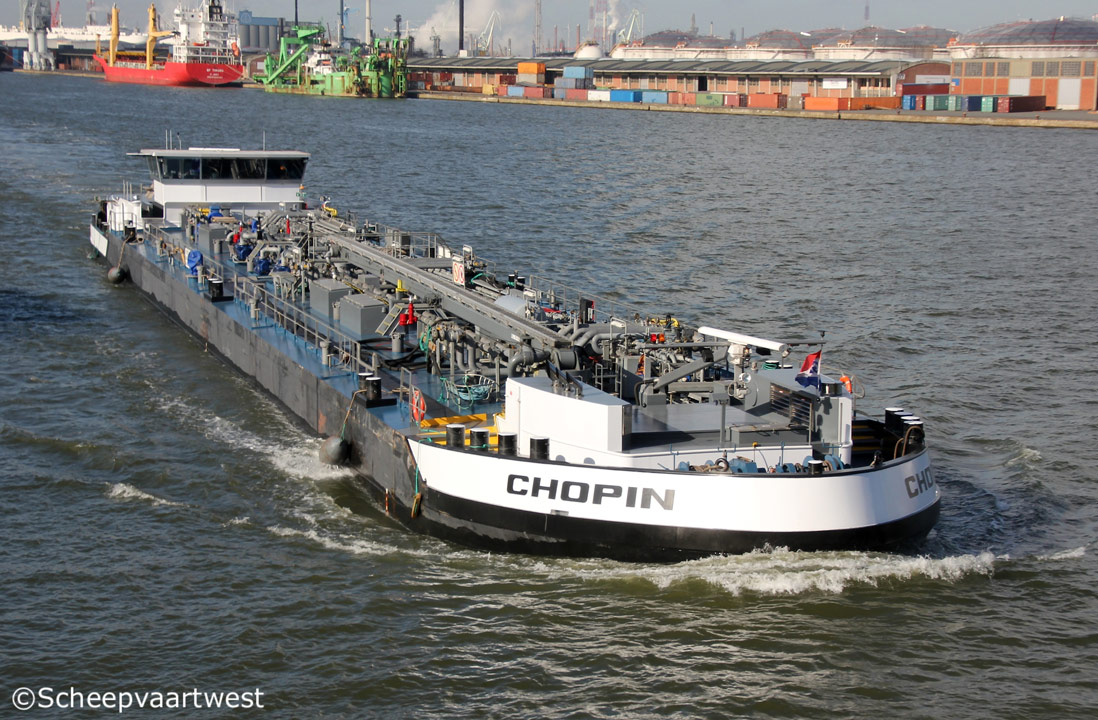

Name
|
CHOPIN
|
Type
|
Inland tanker
|
ENI-number
|
06105532
|
Call sign
|
OT5289
|
Flag
|
Belgium
|
Port of registry
|
Antwerpen
|
Tonnage
|
2.100 t
|
Length
|
85,90 m
|
Breadth
|
11,45 m
|
Draught
|
3,80 m
|
Built
|
2015
|
Builder casco
|
Kladovo Shipyard Kladovo Serbia
|
Builder completion
|
Veka Shipbuilding B.V. Werkendam The Netherlands
|
Hull material
|
Steel
|
Hull type
|
Double hull
|
Main engine
|
1x Mitsubishi S12R-MPTAW diesel engine 940 kW /1.278 hp at 1.600 rpm
|
Gearbox
|
1x Masson Marine type MM W5200 - reduction: 4,962:1
|
Propellers
|
1x 5 blades propeller - Diameter: 1.750 mm
|
Generators
|
1x Caterpillar type C18 engine coupled with Stamford type HCM534 generator 530 kVA
1x John Deere type 6068HF engine coupled with Stamford type UCM274 generator 120 kVA
2x John Deere type 4045TF engines coupled with Stamford type UCM224 generator each 63 kVA
|
Bow thruster
|
1x Caterpillar 535 hp - Verhaar Omega-Jet type 31120-4k electro-motor 393 kW @ 1.800 rpm
|
Number of cargo tanks
|
7
|
Cargo tank capacity
|
2.660 m³
|
Pumps
|
2x Kampers 2C182/68LHE fuel oil pumps each 250 m³/h
1x Kampers 2C156/70LHE gas oil pump 200 m³/h
1x Kampers 2M98/33LHE slop pump 25 m³/h
|
Operator
|
GBS - General Bunkering Services Lichterweg 3
2030 Antwerpen Belgium
|
Owner
|
Bunker Suply A.R.A. BVBA
Kambalastraat 7 2030 Antwerpen Belgium
|
Latest data adjustment
|
07 March 2018
|
