| Westerschelde 13 December 2018 |
|
Name |

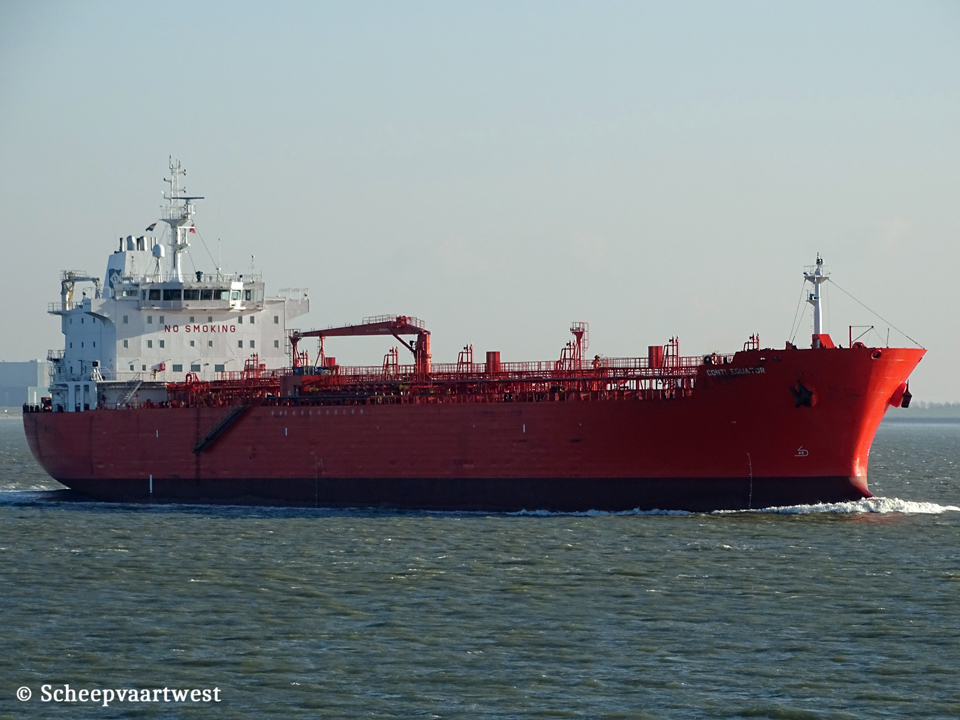

CONTI EQUATOR |
|
Type |
Chemical tanker - Handysize |
|
IMO-number |
9391385 |
|
Call sign |
A8PW5 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
23.403 t |
|
DWT |
Summer: 37.527 t |
|
NT |
9.640 t |
|
Length |
184,32 m overall 176,00 m between perpendiculars |
|
Breadth |
27,43 m extreme |
|
Draught |
Summer: 11,32 m |
|
Keel to mast end |
46,60m |
|
Depth |
17,20 m |
|
Speed |
Max: 15,5 knots |
|
Built |
2008 |
|
Keel laid |
13/03/2008 |
|
Launch date |
16/05/2008 |
|
Date of completion |
08/0//2008 |
|
Builder |
Hyundai Mipo Dockyard Co., Ltd. Ulsan South Korea |
|
Yard number |
2057 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Huyndai/MAN-B&W 6S46MC-C - 2 stroke 6 cylinder 460 w 1.932 mm combustion engine 7.860 kW / 10.660 bhp at 129,0 rpm Starter type: compressed air direct |
|
Propellers |
1x Mono-block fixed pitch propellershaft Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Boilers |
1x Steam boiler, exhaust gas heated - 11,8 bar Heating surface: 260,0 m² Manufacturer: KangRim Industries Co., Ltd. (3rd Factory) 1x Steam boiler, oil fired - 9,0 bar Heating surface: 110,0 m² Manufacturer: Alfa Laval Qingdao Ltd. |
|
Generators |
3x Huynda/Himsen HFC7560-14K 5 H 21/32 main diesel generatorsets each 730 kW / 912,5 kVA |
|
Emergency generator |
1x Diesel generatorset 120 kVA |
|
Compressed air receivers |
2x Receivers each 3.500 litres - 30,0 bar 1x Receiver 250 litres - 30,0 bar 1x Receiver 1.500 litres - 8,0 bar 1x Receiver 300 litres - 8,0 bar |
|
Number of tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
40.805 m³ |
|
Number of slop tanks |
2 |
|
Slop tan capacity |
1.054 m³ |
|
Number of pumps |
12x Framo Deepwell cargo pumps each 500 m³/h 2x Ballast pumps each 750 m³/h |
|
Tank capacities |
Ballast: 18.062 m³ |
|
Anchor equipment |
3x Anchors weight each 7.350 kg Chain length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t |
|
Crew size |
23 |
|
Manager |
NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG Harburger Str. 47 21614 Buxtehude Germany |
|
Registered owner |
Conti 147 Schiffahrts-GmbH & Co KG MT Conti Equator |
|
Renamed |
01/2019 Isolde Liberia, Monrovia - Call sign: A8PW5 Manager: NSB Niederelbe Schiffahrtsges, Buxtehude - Germany Owner: Isolde Condor 224 Schifffahrtsges, Buxtehude - Germany |
|
Latest data adjustment |
17 December 2021 |
