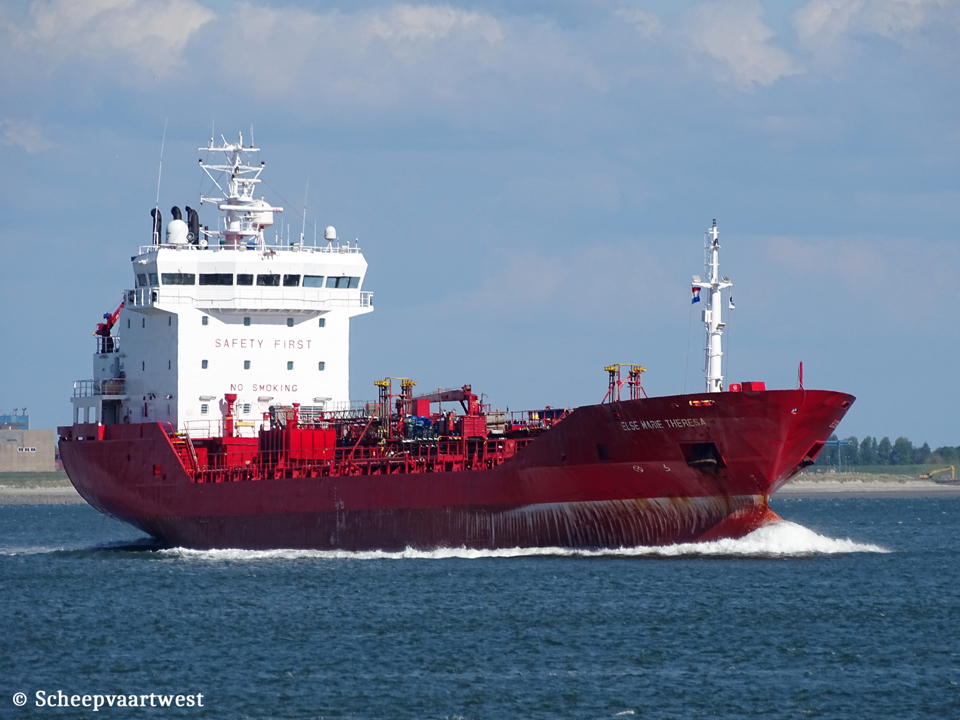

Westerschelde 12 May 2019 |
 |
 |
 |
 |
|||

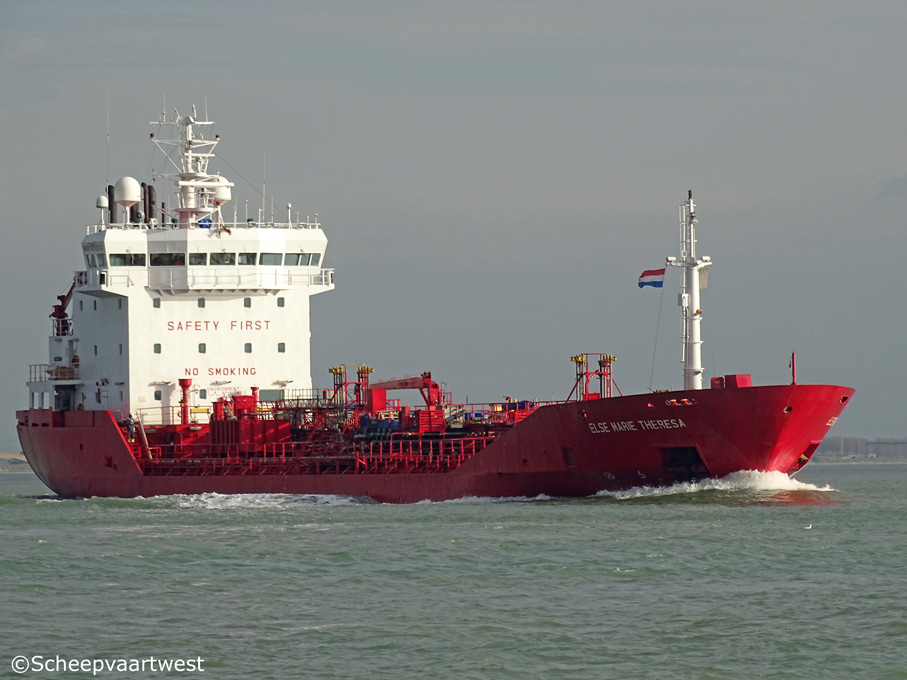

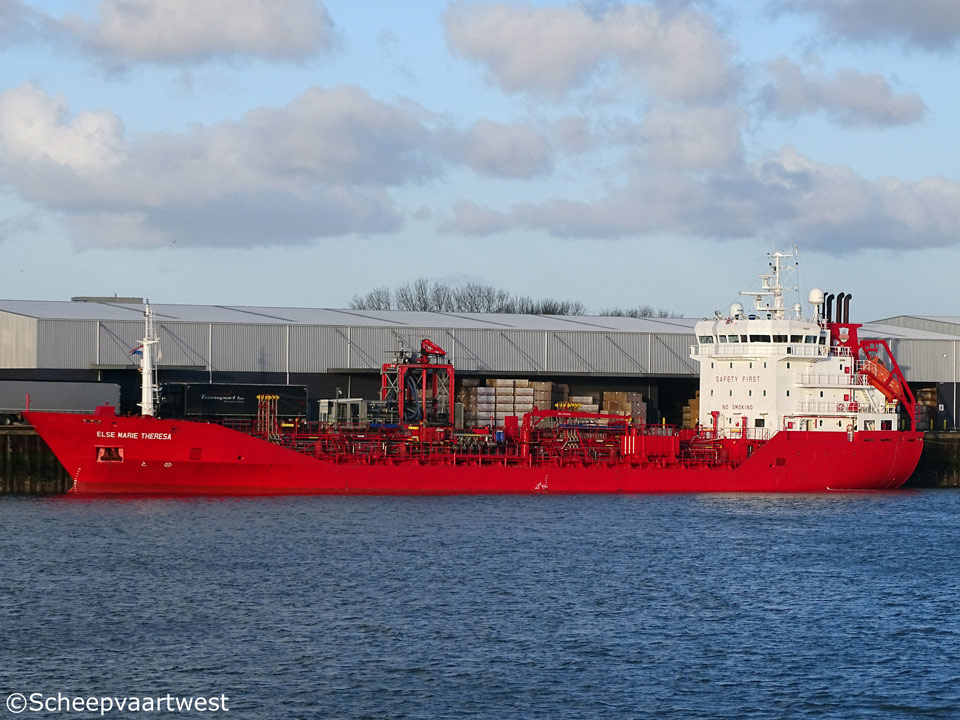

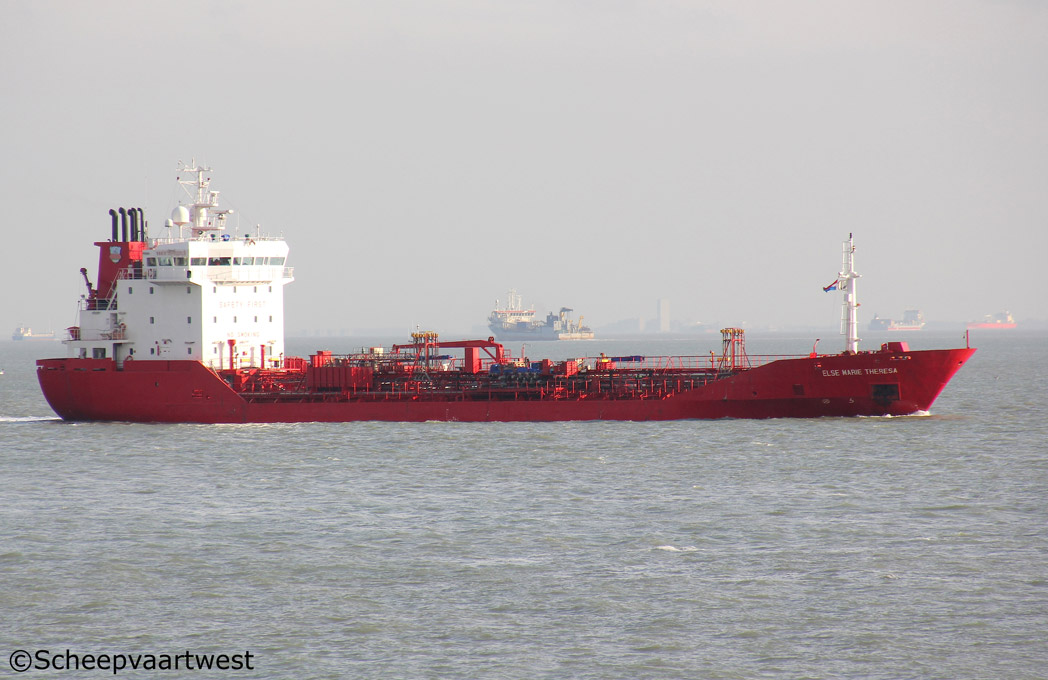

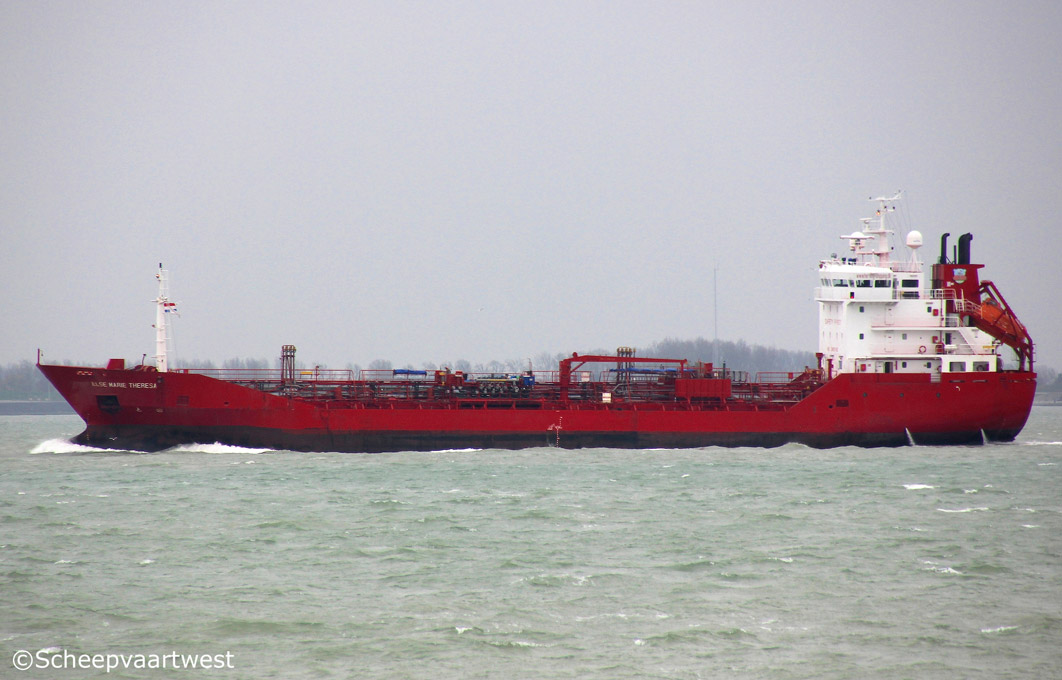

| Westerschelde 12/11/15 | Westerschelde 12/11/15 | Westerschelde 11/11/15 | Vlissingen 13/01/17 | |||
|
Name |
ELSE MARIE THERESA |
|
Type |
Tanker of oil & chemicals |
|
IMO-number |
9237864 |
|
Call sign |
OWJL2 |
|
Flag |
Denmark |
|
Port of registry |
Struer |
|
GT |
2.788 t |
|
DWT |
Summer: 4.307 t Winter: 4.150 t |
|
NT |
1.332 t |
|
Length |
96,30 m overall 88,60 m between perpendiculars |
|
Breadth |
14,20 m |
|
Draught |
6,11 m |
|
Keel to mats end |
28,80 m |
|
Depth |
7,65 m |
|
Speed |
Service: 12 knots |
|
Built |
2001 |
|
Date of completion |
14/12/2001 |
|
Builder |
Gisan Tuzla Shipyard Tuzla, Istanbul Turkey |
|
Yard number |
27 |
|
Hull material |
Steel |
|
Hull type |
Double sides, double bottom |
|
Main engine |
1x MAN-B&W 6L27/38 - 4 stroke 6 cylinder 270 x 380 mm combustion engine 2.040 kW / 2.775 bhp at 800 rpm |
|
Propellers |
1x Controllable pitch propeller |
|
Generators |
2x MAN D2842LE diesel engines each 400 KW connected with generator each 400 kW / 500 kVA at 1.500 rpm - 3x 400 Volt - 50 Hz |
|
Bow thruster |
1x 240 kW |
|
Cargo tank layout |
12x Marine line coated cargo tanks |
|
Total tanks capacity 97% |
4.764 m³ |
|
Number of slop tanks |
2 |
|
Segregation |
Complete segregation - 9 grades of cargo |
|
Number of cargo pumps |
12x Deepweel cargo pumps each 190 m³/h |
|
Loading rate |
800 m³/h |
|
Discharging rate |
190 m³/h |
|
Heating capacity |
80°C |
|
Manifolds |
Manifold to deck: 1,80 m Manifold to platform: 1,0 m Manifold to stern: 53,15 m Manifold to bow: 43,15 m Manifold to rail: 3,30 m |
|
Tank capacities |
Fuel oil: 150 t Diesel oil: 74 t Water ballast: 1.727 m³ |
|
Cargo gear |
2x Gurdessan cranes - SWL 2,0 t each |
|
ISM & commercial manager |
Christiania Shipping A/S Amerika Plads 38 2100 Copenhagen Denmark |
|
Registered owner |
Christiania Shipping A/S Amerika Plads 38 2100 Copenhagen Denmark |
|
Previous owner |
Herning Shipping, Herning - Denmark |
|
Latest data adjustment |
16 November 2021 |
