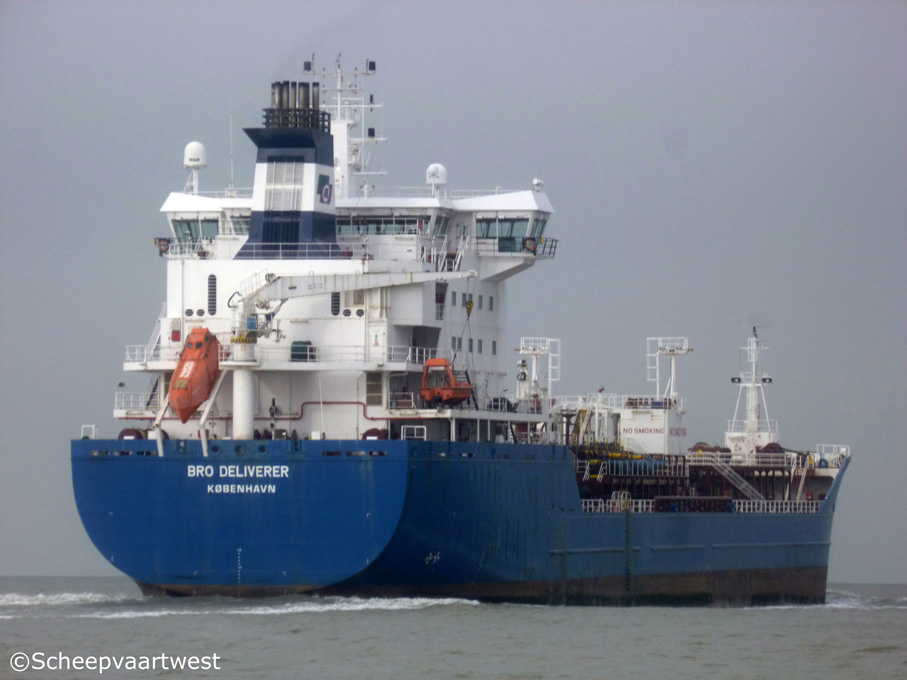

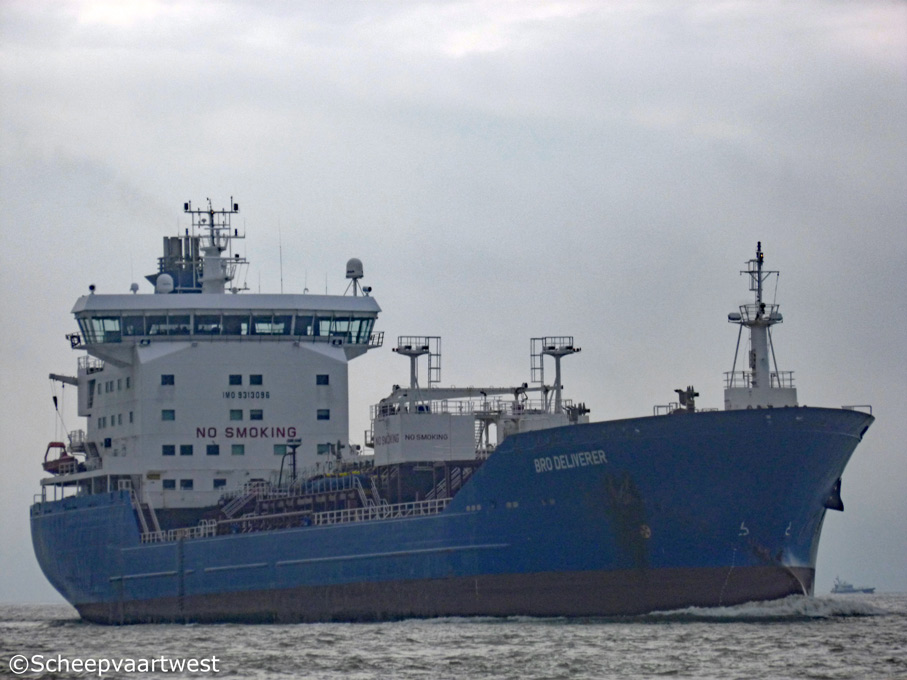

Westerschelde 03 March 2014 |
 |
| Westerschelde 03/03/14 |
|
Name |
BRO DELIVERER |
|
Type |
Tanker for oil and chemicals |
|
IMO-number |
9313096 |
|
Call sign |
OZGG2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
2006 - 2011 Sweden |
|
GT |
11.344 t registered Suez: 11.467,22 t |
|
DWT |
Summer: 114.766 t |
|
NT |
4.478 t registered Suez: 9.786,59 t |
|
Displacement |
20.578,1 t |
|
Length |
146,80 m overall 134,40 m between perpendiculars |
|
Breadth |
22,03 m extreme |
|
Draught |
8,00 m |
|
Keel to, mast end |
40,00 m |
|
Freeboard |
3.609 mm |
|
Depth |
11,80 m moulded |
|
Speed |
Service: 13,5 knots |
|
Built |
2006 |
|
Keel laid |
30/11/2004 |
|
Launch date |
10/06/2005 |
|
Delivery date |
06/04/2006 |
|
Builder |
CSC Jinling Shipyard No. 55 Yan Jiang Road Nanjing, 210015 China |
|
Yard number |
JLZ030507 |
|
Hull material |
High strength steel Ordinary strength steel |
|
Hull type |
Double hull |
|
Bulkheads |
Water tight: 13 Oil tight : 1 |
|
Continuous decks |
1 |
|
Main engine |
2x MAN B&W 7L27/38 - 4 stroke single acting 7 cylinder 270 x 380 mm diesel engines each 2.380 kW / 3.236 hp total 4.759 / 6.470 hp at 800 rpm Builder: MAN B&W Diesel A/S, Alpha Diesel - Frederikshavn - Denmark |
|
Propellers |
2x Fixed propellers |
|
Boilers |
1x Composite boiler port - 9,0 MPa 1x Composite boiler starboard - 9,0 MPa |
|
Generators |
4x Main diesel generatorsets each 570 kW |
|
Bow thruster |
1x 1.000 KW |
|
Number of cargo tanks |
15 |
|
Cargo tank capacity |
18.521,2 m³ |
|
Number of tanks |
Ballast: 17 Fuel oil: 13 Lubricating oil: 8 Diesel oil: 4 Fresh water: 4 Sludge: 3 Hydraulic oil: 2 Chemical: 2 Chain: 2 Potable water: 2 Waste water: 1 |
|
Tank capacities |
Diesel Oil: 296,7 m³ Freshwater: 440,7 m³ Fuel Oil: 748,3 m³ Hydraulic Oil: 19,0 m³ Lube Oil: 57,3 m³ Tank Ballast: 7.403,7 m³ |
|
Anchor equipment |
Length: 577,50 m Diameter: 58 mm |
|
Manager |
Maersk Tankers Esplanaden 50 Copenhagen K Denmark |
|
Previous managers |
2006 - 2011 Broström Ship Management AB 2011 - 2011 Broström Tankers AB 2011 - 2012 Maersk Tankers A/S 2012 - 2013 Bröstrom AB |
|
Registered owner |
Maersk Tankers A/S |
|
Previous owners |
2006 - 2011 Broström Tankers AB 2011 - 2012 A.P. Moller - Maersk A/S |
|
Renamed |
03/2021 Hammerhead Marshall islands, Majuro - call sign: V7A4577 Reg. owner: Eris Partners Co., Ltd. |
|
Latest data adjustment |
11 April 2021 |
