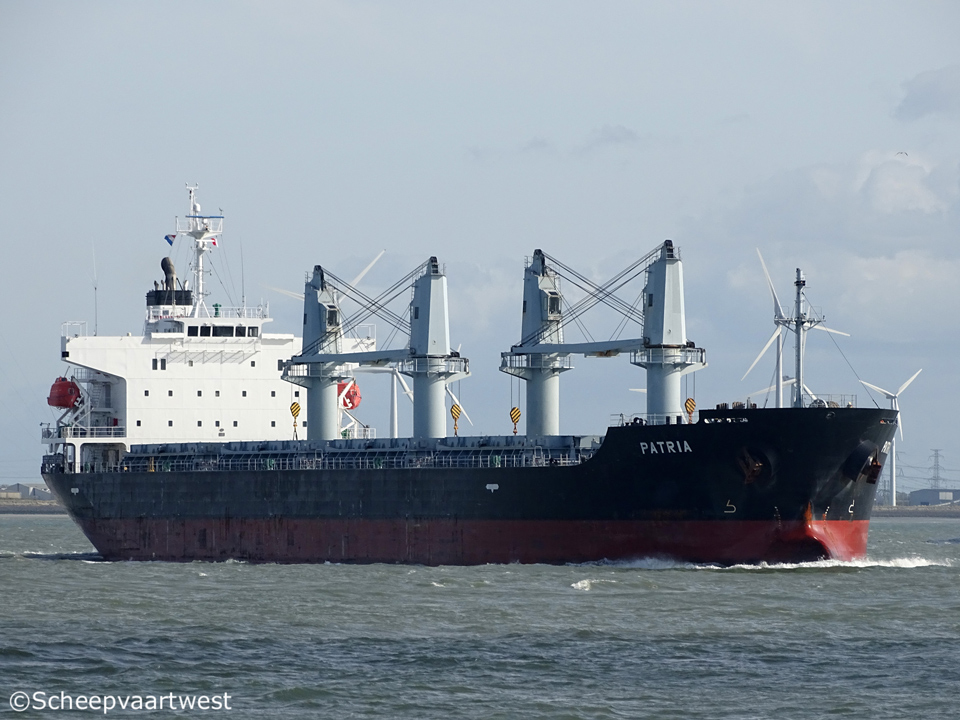

Patria 01

Westerschelde 12 October 2017

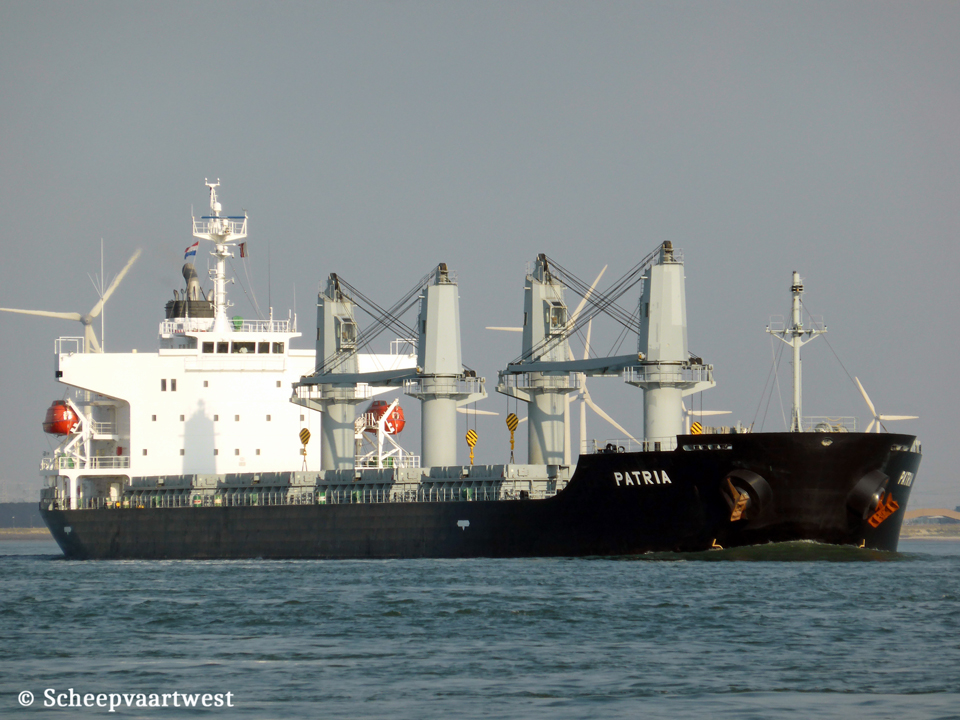

Patria IMO 9580053 02
Westerschelde 11/09/15


Name

PATRIA

Type

Bulk carrier

IMO-number

9580053

Call sign

D5FC3

Flag

Liberia

Port of registry

Monrovia

GT

19.785 t registered

DWT

Summer: 32.069 t

NT

10.395 t registered

Length

175,53 m overall

Breadth

29,40 m moulded

Draught

Summer: 9,64 m

Moulded L x B x D

167,00 x 29,40 x 13,70 m

Registered L x B x D

167,76 x 29,40 x 13,70 m

Freeboard

Summer: 4.105 mm

Depth

13,70 m moulded

Speed

Max: 16,0 knots

Service: 14,4 knots

Built

2014

Keel laid

20/12/2011

Launch date

04/10/2013

Date of completion

13/03/2014

Builder

The Hakodate Dock Co., Ltd.

20-3, Benten-cho

Hakodate, 040-8605

Japan

Yard number

861

Hull material

Steel

Hull type

Double hull construction applied to all cargo holds

Main engine

1x Mitsubishi 6UEC45LSE - 2 Stroke single acting 6 cylinder 450 x 1.840 mm combustion engine 6.840 kW at 129,0 rpm

Manufacturer: Akasaka Diesels Limited

Propeller shaft

1x Oil lubrication shaft without monitoring device

Diameter: 430 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler- 7,0 bar

Evaporation: 2,30 t/h

Manufacturer: Osaka Boiler Mfg., Co., Ltd.

Generators

3x Generatorsets total 1.080 kVA

Cargo hold capacity

Grain: 40.503 m³

Bale: 39.272 m³

Tank capacities

Fuel oil: 1.387 m³

Fresh water: 200 m³

Cargo gear

4x Cranes - SWL 30,0 t each

Manager

Blumenthal Asia Pte. Ltd.

Republic of Singapore

Previous manager

Johann M.K. Blumenthal GmbH & Co. KG, 22767 Hamburg - Germany

Registered owner

Gamma Shipholding Ltd.

Previous owner

Alpha Shipholding Ltd.

Care of Blumenthal Asia Pte Ltd. - Republic of Singapore

Latest data adjustment

20 August 2024
