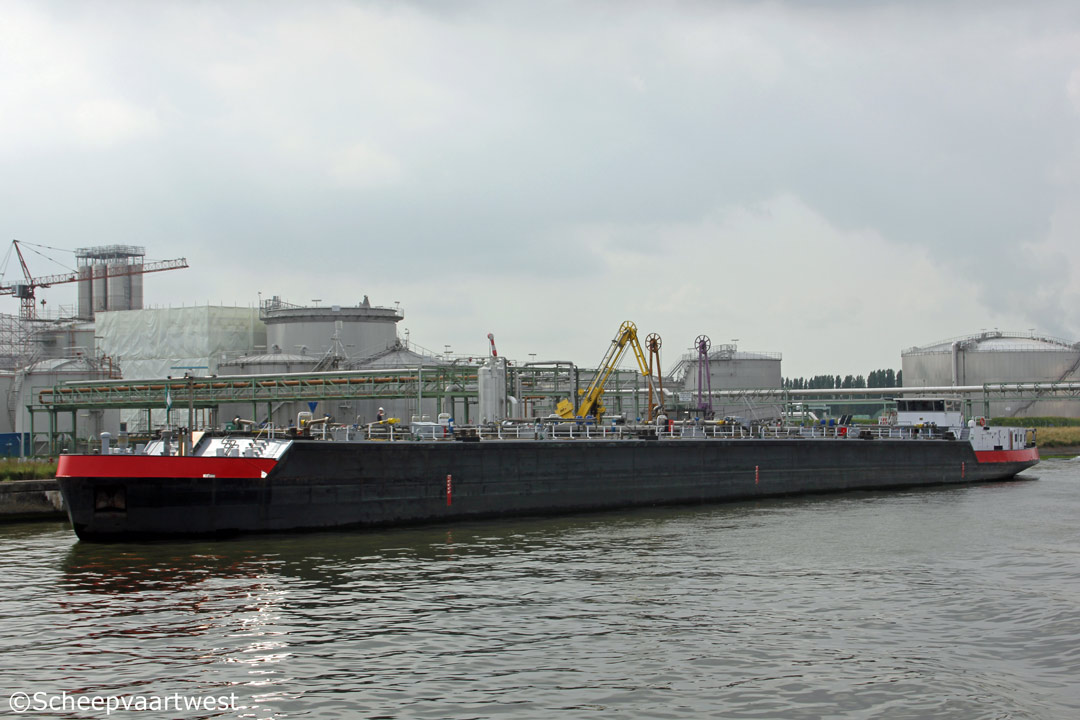

Max Planck 02

Antwerpen 05 July 2013

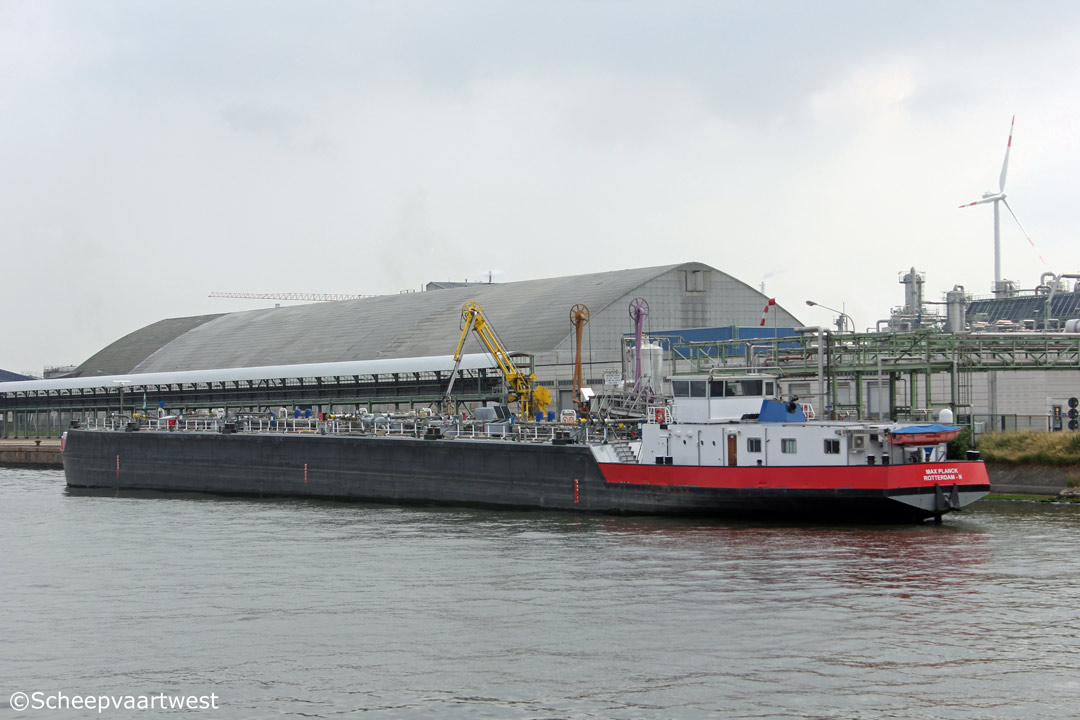

Max Planck 01
Antwerpen 05/07/13


Name

MAX PLANCK

Previous names

1992 - 2000 Lippia

2000 - 2008 Vopak. Planck

Type

Inland tanker

ENI-number

02320322

Call sign

PF6866

Flag

The Netherlands

Port of registry

Rotterdam

GT

1.176 t

Tonnage

2.476 t

Length

109,52 m overall

106,40 m between perpendiculars

Breadth

11,34 m

Draught

3,28 m

Air draft

4,50 m

Built

1992

Builder casco

Bodewes
Millingen a/d Rijn
The netherlands

Yard number: 826

Builder completion

Vahali
Gendt
The Netherlands

Yard number: 843

Hull material

Steel

Hull type

Double hull

Watertight compartments

13

Continuous decks

1

Main engine

1x ABC 6 MDZC - 6 cylinder diesel engine 883 kW / 1.200 hp at 750 rpm

Built: 1991

Builder: Anglo Belgian Corporation NV

Wiedauwkaai 43

9000 Gent
Belgium

Propellers

1x Screw Propeller Solid - aft at 310 rpm

Generators

1x Diesel generatorset 190 kVA - 152 kW

2x Diesel generatorsets each 60 kVA - 48 kW

Bow thruster

1x DAF 275 hp - Verhaar Omega-Jet

Number of cargo tanks

10

Cargo tank capacity

3.244 m³

Number of pumps

10x Cargo pumps each 100 m³/h

Operator

Interstream Barging Nederland B.V.

Owner

Motortankschip Lombardia BV
Rotterdam
The Netherlands

Registered owner

Max Planck Scheepvaart B.V.
The Netherlands

Previous names & owners

1992 - 2000 Lippia - Phs.van Ommeren Binnentankvaart, in Rotterdam - The Netherlands

2000 - 2008 Vopak. Planck - Vopak Barging Europe BV, Dordrecht - The Netherlands

Latest data adjustment

27 February 2017
