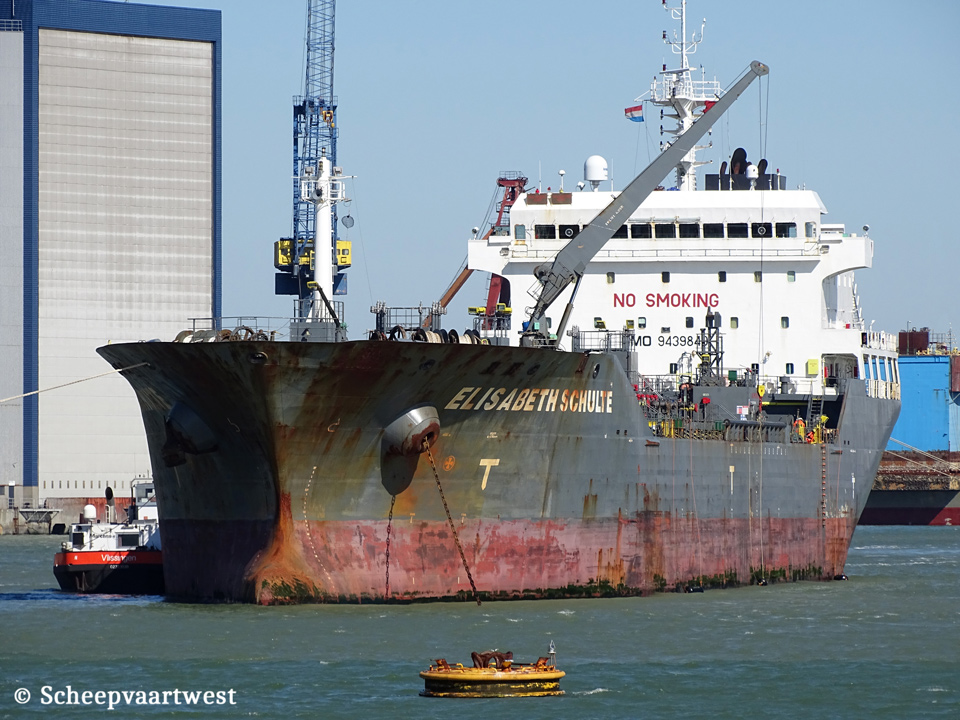

Vlissingen 21 March 2020 |
 |
|

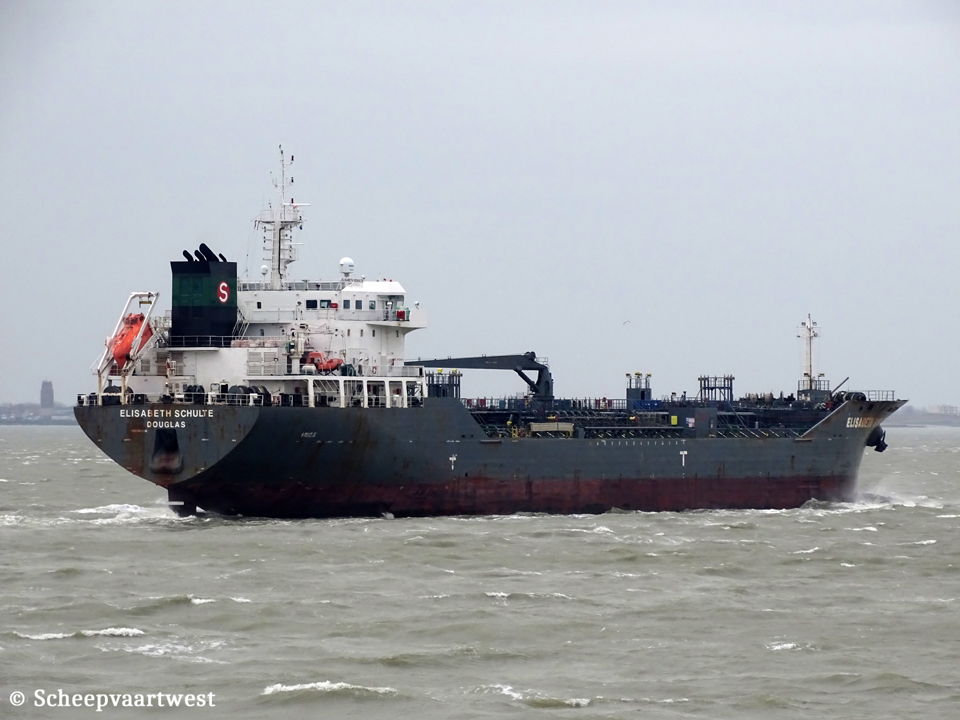

| Westerschelde 15/01/20 | |
|
Name |
ELISABETH SCHULTE |
|
Type |
Tanker of oil and chemicals |
|
IMO-number |
9439840 |
|
Call sign |
2CVZ9 |
|
Flag |
Isle of Man - United Kingdom |
|
Port of registry |
Douglas |
|
GT |
11.246 t Suez: 11.988,45 t |
|
DWT |
Summer: 16.371 t |
|
NT |
4.961 t Suez: 9.934,33 t |
|
Displacement |
22.078 t |
|
Length |
145,15 m overall 135,60 m between perpendiculars |
|
Breadth |
23,28 m overall |
|
Draught |
Summer: 8,80 m |
|
Keel to mast end |
39,20 m |
|
Freeboard |
3.714 t |
|
Depth |
12,50 m moulded |
|
Speed |
Service: 13,5 knots |
|
Built |
2010 |
|
Keel laid |
20/10/2007 |
|
Launch date |
28/12/2009 |
|
Delivery |
14/10/2010 |
|
Builder |
Jiangxi Jiangzhou Union Shipbuilding Co. Ltd. Rui Chang China |
|
Yard number |
JZ1011 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x STX/MAN-B&W 6S35MC-MK7 - 2 stroke single acting 6 cylinder 350 x 1.400 mm combustion engine 4.440 kW / 6.037 hp at 173,0 rpm Manufacturer: STX Engine Co., Ltd. - South Korea |
|
Propellers |
1x Fixed pitch propeller - aft at 173,0 rpm Manufacturer: Wärtsilä Cme Zhenjiang Propeller Co., Ltd. |
|
Boilers |
1x Exhaust gas boiler - 7,0 MPa 2x Oil fired boiler - 7,0 MPa Manufacturer: Zhangjiagang Greens Shazhou Boiler Co., Ltd. |
|
Generators |
2x Daihatsu 5DK-20E - 4 stroke 5 cylinder 200 x 300 mm each 660 kW connected with generators each 450 ekW 1x Daihatsu 5DK-20E - 4 stroke 5 cylinder 200 x 300 mm each 660 kW connected with generators each 600 ekW Manufacturer: CSIC Electrical Machinery Science & Technology Co. |
|
Bow thruster |
1x Tunnel thruster 750 kW / 1.020 bhp, forward |
|
Number of cargo tanks |
12 + 2 slop tanks |
|
Cargo tank capacity |
19.649,94 m³ - 100% 18.800 m³ - 98% |
|
Slop tank capacity |
424 m³ |
|
Number of pumps |
12x Cargo pumps each 300 m³/h |
|
Tank capacities |
Fuel oil: 689,69 m³ Lube oil: 87,10 m³ Ballast: 7.720,64 m³ Fresh water: 659,57 m³ Diesel oil: 92,12 m³ |
|
Lifting equipment |
1x Deck crane - SWL 10,0 t 1x Provision crane - SWL 2,0 t Manufacturer: Auxiliary Machinery Works 1x Engine room crane - SWL 2,0 t Manufacturer: Jiangyin Oya Marine Machinery Co., Ltd. |
|
Crew |
20 |
|
ISM & commercial manager |
Bernhard Schulte Shipmanagement (CY) Ltd. Cyprus Hanseatic House, 111, Spyrou Araouzou Street 3036 Limassol Cyprus |
|
Registered owner |
Cooildarry Shipping Ltd. c/o Bernhard Schulte (Hellas) 6-8, Kifisias Avenue 151 25 Athens Greece |
|
Latest data adjustment |
04 November 2022 |
